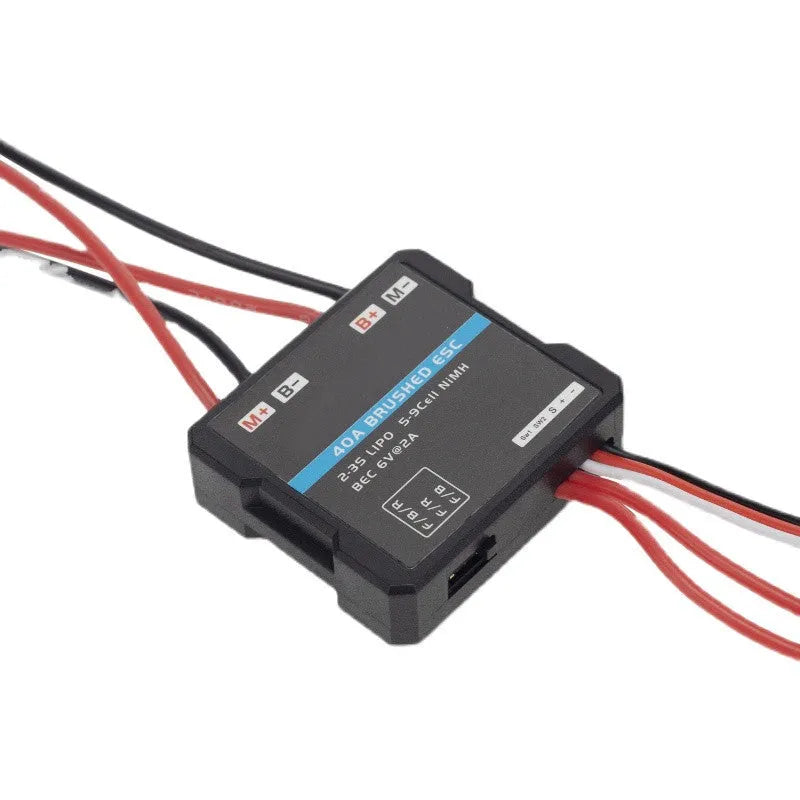

40A Brushed Speed Controller with Adjustable Two-Way and Climbing Modes for 1/16 & 1/18 Scale RC Vehicles

This compact brushed electronic speed controller (ESC) is engineered to deliver reliable power management and versatile control for small-scale radio-controlled models. It bridges the gap between basic functionality and specialised performance by offering three distinct operational modes, including a dedicated setting for tackling challenging inclines. With a continuous forward current rating of 40A, it provides sufficient overhead for the high-torque demands of crawlers and climbers while remaining perfectly matched to the scale of 1/16 and 1/18 vehicles such as scooters, trucks, and tanks. Compatibility with common 2S Lipo or 5-6 cell NiMH battery packs makes it a practical choice for hobbyists with existing power systems, and its integrated BEC simplifies wiring by powering the receiver directly.

Features and Construction

This ESC is defined by its core technical ratings and operational flexibility, designed specifically for the constraints and demands of miniature RC platforms. Its construction focuses on delivering stable current within a compact form factor suitable for tight chassis spaces.

Material and Build

The unit is built around a printed circuit board (PCB) that manages the high-current switching required for motor control. Components are selected to handle the thermal load associated with a 40A continuous and 160A peak forward current. The housing provides necessary electrical insulation and aids in heat dissipation, a critical factor for maintaining performance during sustained use in climbing scenarios. The build prioritises functional reliability for its specified power range over ornamental features.

Size and Practical Fit

As a "miniature" brushed ESC, its physical dimensions are designed to integrate into 1/16 and 1/18 scale models, where internal space is at a premium. This makes it a direct fit for a range of popular small-scale vehicles mentioned, including scooters, Bigfoot-style trucks, and tracked tanks. The compact design ensures it can be mounted within the confines of detailed scale bodies without requiring major chassis modifications, preserving the model's appearance and balance.

Uses and Placement

The product's value is realised in specific RC applications where control and torque are paramount. Its mode selection allows users to tailor the driving experience to the vehicle's primary purpose, from casual bashing to technical crawling.

Event or Professional Use

In competitive crawling or scale trailing events, the dedicated climbing mode offers a significant advantage. This mode optimises the ESC's response for low-speed, high-torque situations, providing smoother throttle control on steep, uneven terrain. The 40A current capacity ensures the motor receives consistent power during stressful, bound-up situations common in these disciplines, reducing the risk of thermal shutdown during a course run.

Everyday Home Use

For general driving and backyard bashing, the standard two-way (forward/reverse) mode provides intuitive control for new and experienced users alike. The ESC's support for common 280, 370, and 380-sized brushed motors makes it an ideal upgrade or replacement part for many ready-to-run (RTR) 1/16 scale models. Its ability to run on either Lipo or NiMH batteries offers flexibility, allowing users to choose between the high power density of Lipos or the simplicity and safety of NiMH packs for casual use.

Benefits and Buying Value

The controller's value lies in its specialised functionality, compatibility, and the practical problem it solves for owners of small-scale brushed motor vehicles.

Reuse and Low Maintenance

As a solid-state electronic component with no moving brushes (unlike the motor it controls), the ESC itself requires minimal maintenance. Its durability is tied to operating within its specified limits—using the correct battery voltage and a motor within its supported size and RPM range. This makes it a long-term solution that can potentially outlast several motor replacements, adding value over time.

Why Choose This Product

This ESC is chosen for its specific feature set: the climbing mode. For enthusiasts with scale crawlers or trucks used on rough terrain, this mode is a functional differentiator not found on all basic speed controllers. The 40A rating provides a known margin of safety for small-scale motors, and the clear compatibility list (1/16, 1/18 scale, specific motor sizes) allows for a confident purchase, ensuring it will work with your existing model without guesswork.
