BMW 20-pin to 16-pin OBD2 Diagnostic Connector Cable for direct ECU interface and vehicle diagnostics with 12V operation and 45°C rating
BMW Line 20 Pin
£16.98
Sale price
£16.98
Regular price
Skip to product information
This BMW-specific diagnostic adapter cable creates a crucial link between the proprietary 20-pin diagnostic socket found in many older BMW models and the universal 16-pin OBD2 port used by modern scan tools. It enables mechanics, technicians, and enthusiasts to perform essential diagnostics, read fault codes, and access live engine data from the vehicle's ECU without requiring dedicated, often costly, manufacturer equipment. The cable operates at the standard 12V vehicle voltage and is rated for environments up to 45°C, making it suitable for use in a typical garage or workshop setting.
This adapter serves a single, precise function: translating the BMW-specific 20-pin diagnostic interface to the universal OBD2 standard. Its construction is focused on providing a reliable, passive electrical connection that ensures accurate signal transmission between the car's computer and your diagnostic tool.
The primary value of this adapter is functional and economic, providing specialised access through a universally compatible end point.
BMW 20-pin to 16-pin OBD2 Diagnostic Connector Cable for direct ECU interface and vehicle diagnostics with 12V operation and 45°C rating
£16.98
Sale price
£16.98
Regular price
BMW 20-pin to 16-pin OBD2 Diagnostic Connector Cable for Direct Vehicle ECU Communication
Features and Build Quality of the Diagnostic Adapter
Connector Design and Interface

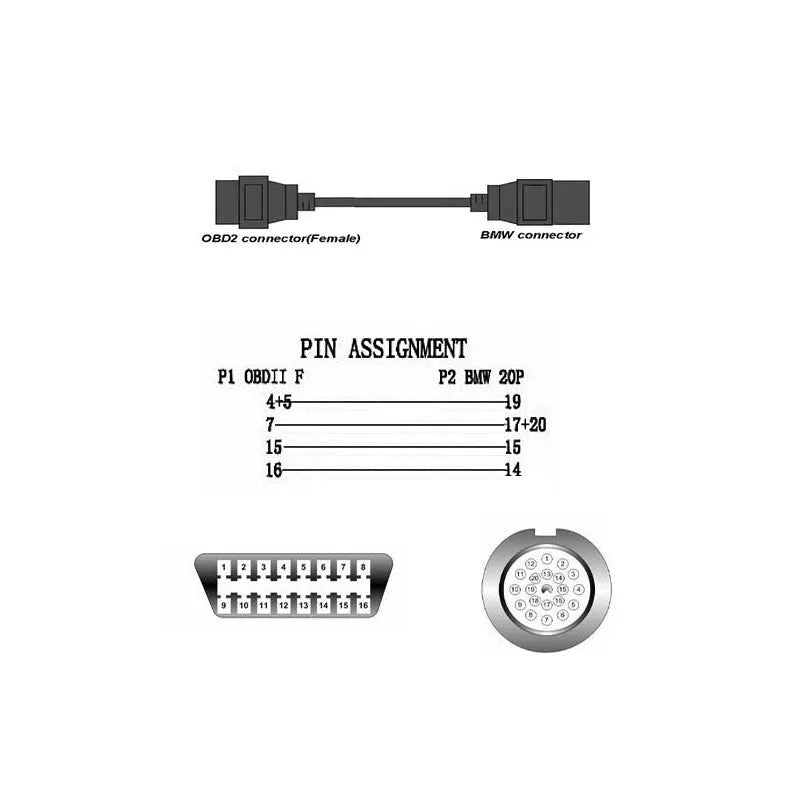

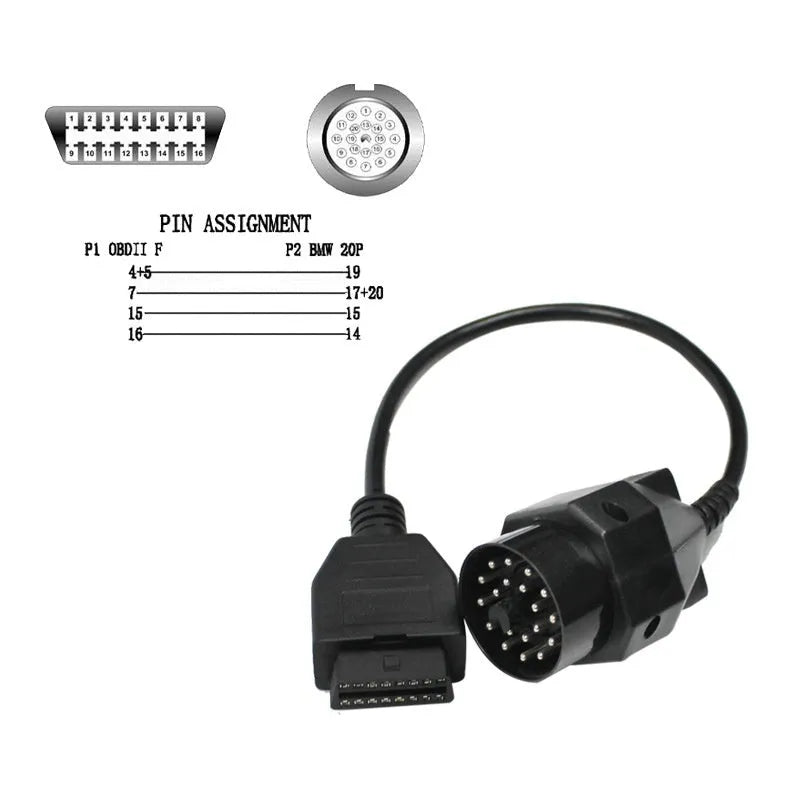

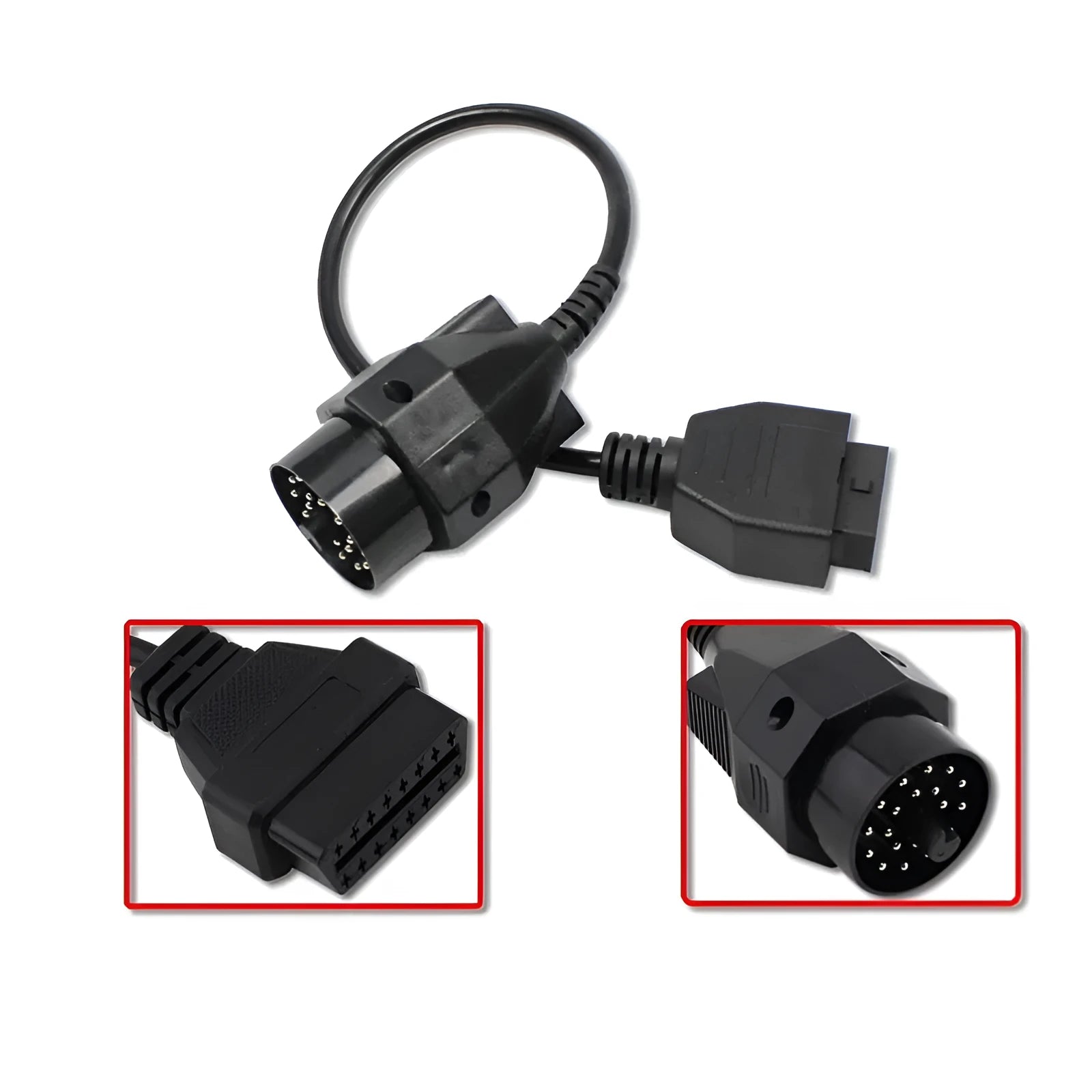

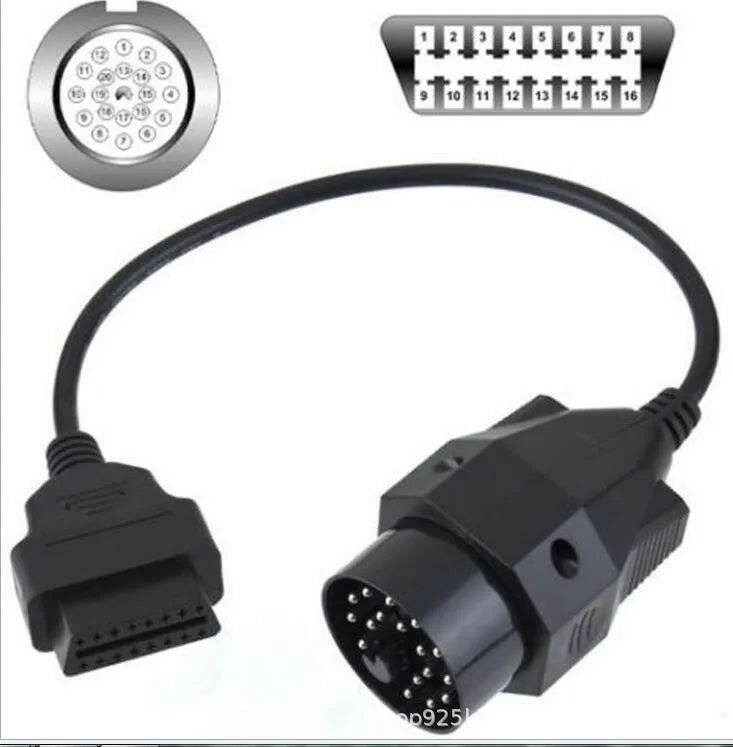

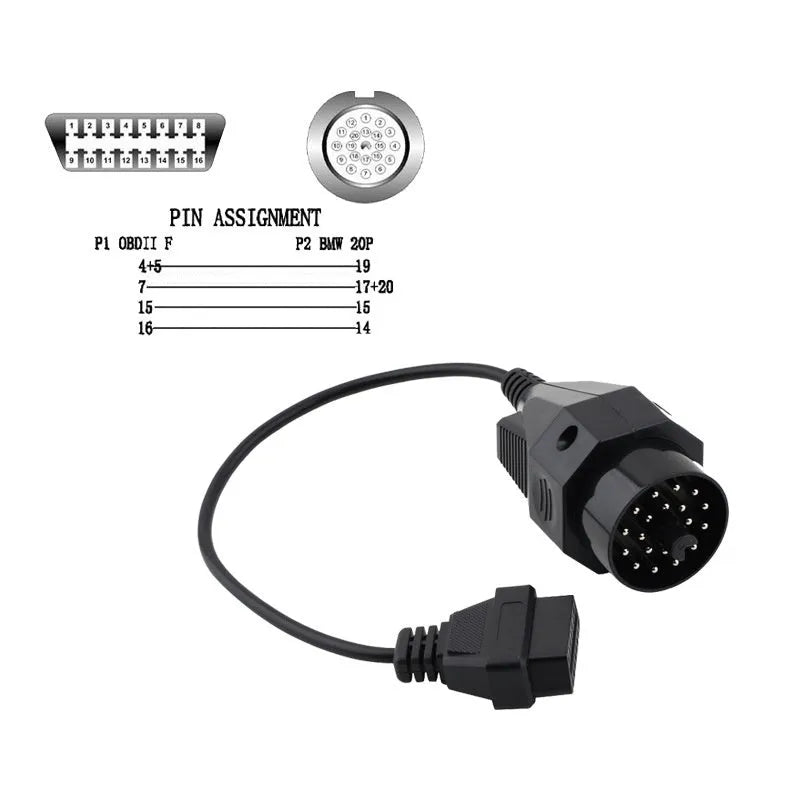

The adapter features a 20-pin male connector on one end, designed to mate securely with the vehicle's proprietary diagnostic port, which is often located under the bonnet. The opposite end is a standardised 16-pin female OBD2 socket. The internal wiring provides a direct, pin-to-pin mapping based on established BMW diagnostic protocols, ensuring that data requests from your scan tool are correctly routed to the car's electronic control units.Electrical Specifications and Performance
The cable is engineered for the 12V electrical system standard in passenger vehicles. This voltage compatibility is fundamental for safe and correct operation with the car's onboard diagnostics. The adapter has a stated operating temperature rating of 45°C, which covers the ambient conditions found in most under-bonnet and interior cabin locations during diagnostic work, preventing performance issues related to heat.Durability and Connection Integrity
Practical Applications for the Adapter Cable This tool is specifically for vehicles that predate or exist alongside the mandated OBD2 standard, bridging a technological gap. It turns a potential obstacle into a straightforward connection.Professional Workshop Use
For independent garages and specialists, this cable allows access to basic BMW diagnostics without investing in a dedicated manufacturer system for older models. It enables quick code reading and clearing for common faults, helping to diagnose issues related to engine management, emissions, and other systems accessible via the standard OBD2 protocol, streamlining the initial investigation process.Enthusiast and DIY Mechanic Use
For the home mechanic or BMW enthusiast, this adapter unlocks the ability to use affordable, generic OBD2 code readers or Bluetooth adapters with their older BMW. This provides the satisfaction of identifying a check engine light cause, resetting service interval indicators, or monitoring basic sensor data from a smartphone app, all through a direct physical connection that feels reassuringly solid when plugged in.Versatility Across BMW Models
While the source specifies it is for BMW vehicles, its utility spans various models from the late 1980s through the 1990s and early 2000s that utilised the round 20-pin diagnostic port. It is a single solution for a range of classic and older BMWs, from the 3 Series E30 and E36 to the 5 Series E34 and E39, and the 7 Series E32 and E38, making it a versatile tool for anyone working on multiple vehicles from that era.Key Benefits of Using This Diagnostic Bridge
Long-Term Value and Cost Benefit
Compared to the expense of proprietary diagnostic systems or dealer visits for simple code readings, this low-cost adapter offers significant long-term value. It leverages the diagnostic tool you may already own, extending its functionality to a specific niche of vehicles. For an owner of an older BMW, it represents a modest one-time investment for repeated diagnostic access over the lifetime of the car.User Confidence and Peace of Mind
The confidence gained comes directly from the technical specification: the 12V rating ensures safe integration with your car's electronics, and the direct pin mapping means reliable communication. This reliable connection provides peace of mind that the fault codes or data you are reading are accurate reflections of the vehicle's status, leading to more informed troubleshooting decisions.Making the Connection to Your BMW's History
If you own a classic or older BMW, this adapter is the specific physical link required to connect its internal systems to modern diagnostic technology. It provides the measurable benefit of direct ECU access via a standard OBD2 port, allowing you to maintain, understand, and troubleshoot your vehicle with greater independence and technical insight.
