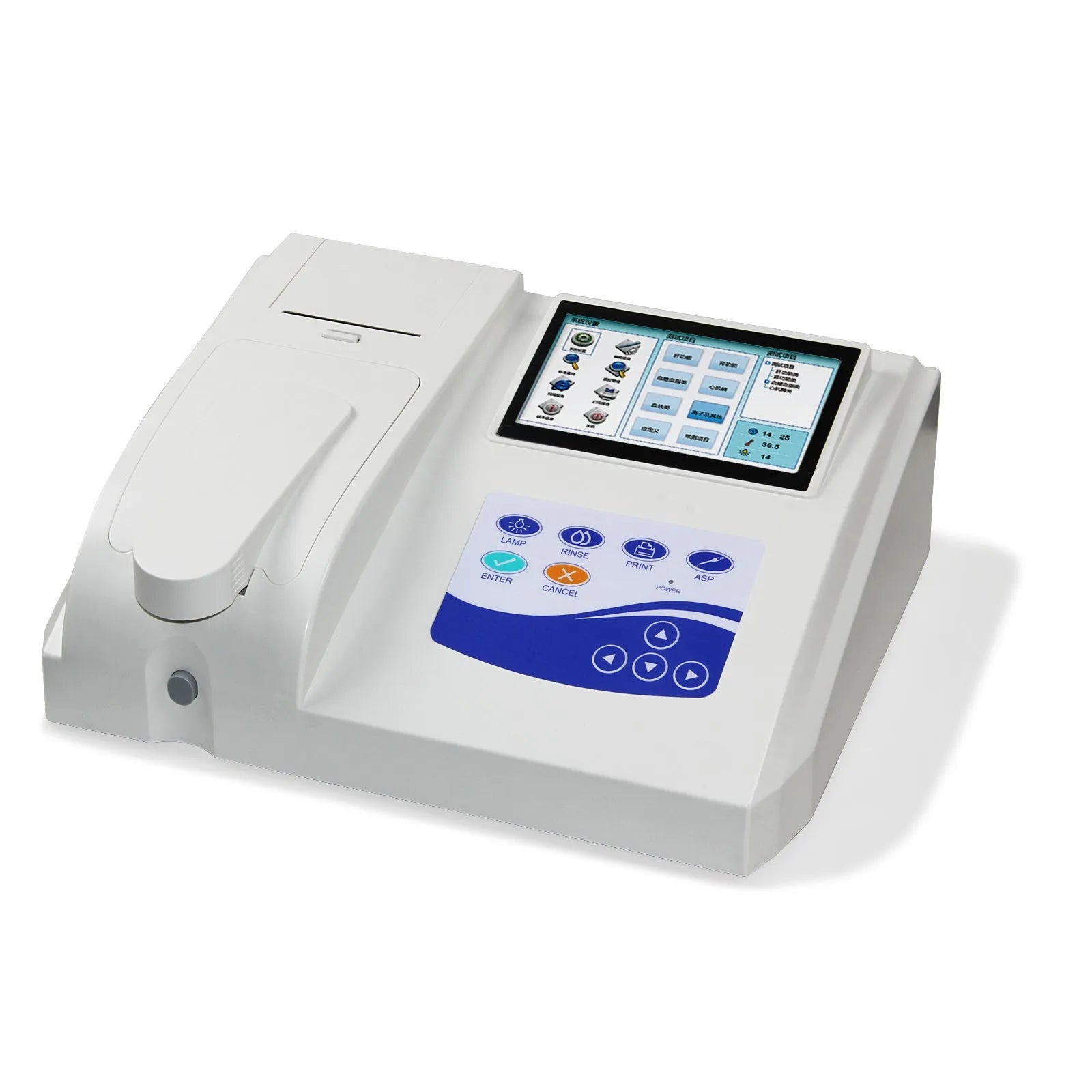

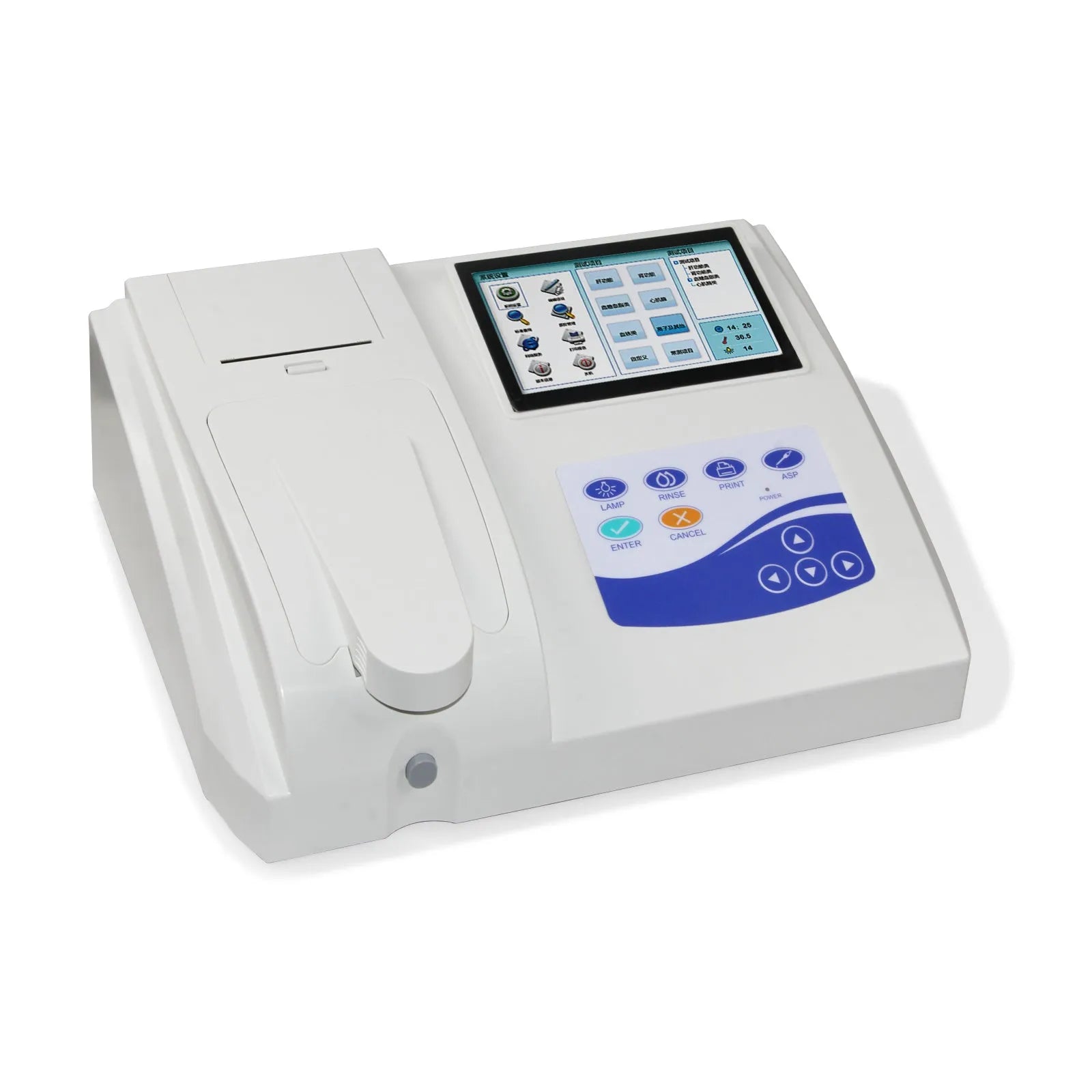

CONTEC BC300 Semi-Automatic Biochemistry Analyser with Touch Screen and Thermal Printer

The CONTEC BC300 Semi Automatic Biochemistry Blood Analyzer is a compact clinical instrument designed for measuring biochemical indexes in blood and other body fluids. By analysing these parameters and combining them with other clinical information, it aids in disease diagnosis, organ function evaluation, and establishing baselines for future therapy. Its semi-automatic operation, facilitated by a colour graphical interface on a 7-inch touch screen, along with multiple connectivity options and a built-in thermal printer, makes it a practical choice for laboratory settings requiring reliable, multi-parameter analysis without the footprint of a fully automated system.

Features and Construction

The BC300 is built around an embedded high-speed processor and a Linux operating system, providing a stable platform for its analytical functions. Its construction prioritises functional reliability and user-oriented operation, incorporating key components like a halogen lamp light source and a quartz flow cell.

Material and Build

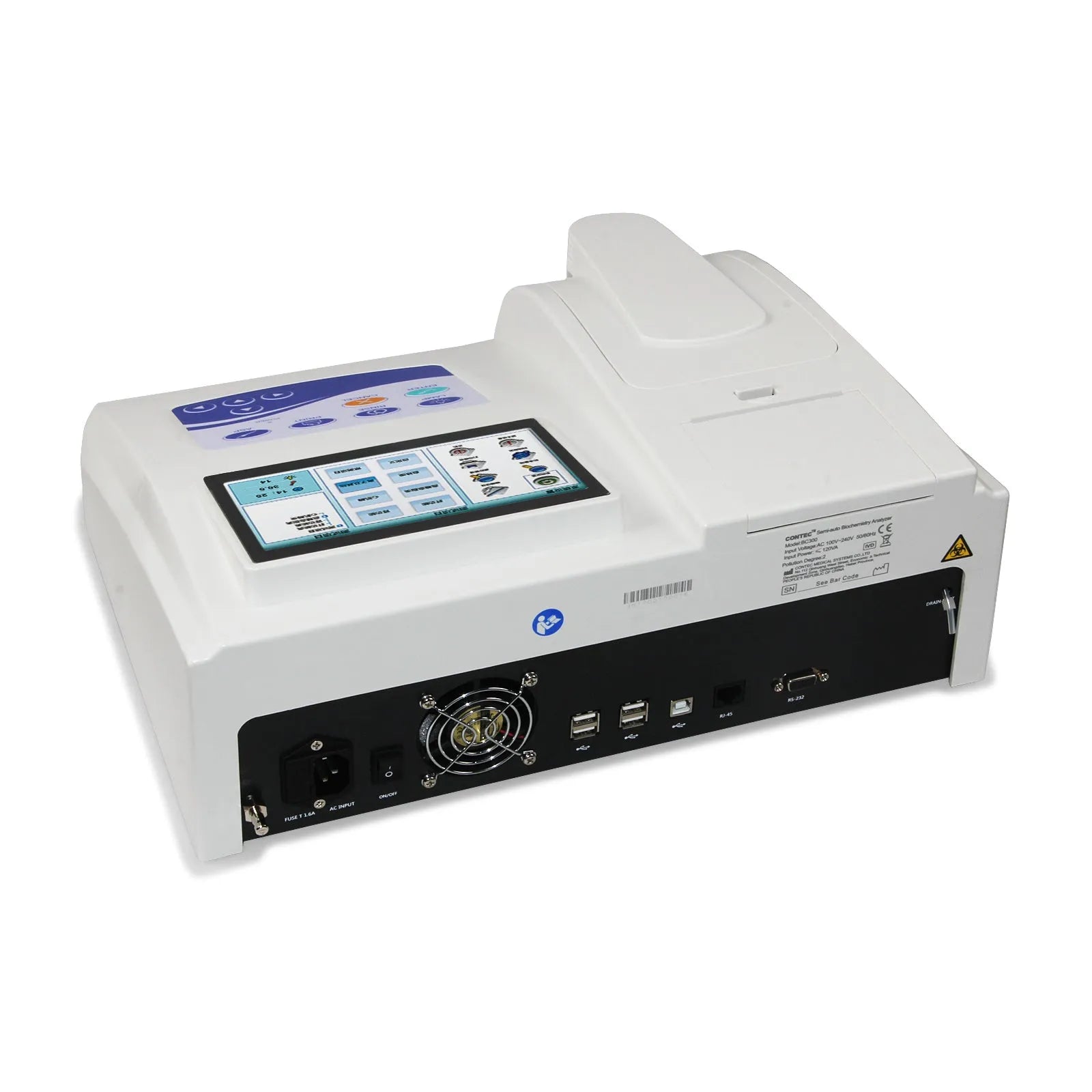

The core optical system uses a long-life halogen lamp as its light source, offering six fixed wavelengths—340nm, 405nm, 510nm, 546nm, 578nm, and 620nm—plus two additional free positions for method flexibility. Sample analysis occurs within a precise 30µl quartz flow colourimetric cell. The unit's housing contains standard electronic interfaces, including RS232 and Ethernet for data communication, and four USB ports for connecting peripherals like a mouse or keyboard, supplementing the primary touch screen controls.

Size and Practical Fit

With dimensions of 410mm in length, 340mm in width, and 150mm in height, and a weight of 6kg, the BC300 has a compact benchtop footprint suitable for various laboratory environments. It is designed to operate within a temperature range of 10°C to 30°C and at relative humidity of 80% or less. This manageable size and environmental tolerance make it viable for use in smaller clinics or satellite labs where space and climate control may be limited.

Uses and Placement

This analyser is intended for professional clinical diagnostics, translating sample measurements into actionable data. Its application spans several key areas of laboratory medicine, from routine checks to more specialised assessments.

Event or Professional Use

In professional medical laboratories, the BC300 performs vital functions such as diagnosing diseases, evaluating the functional status of organs like the liver or kidneys, and identifying biomarkers. Its ability to store 500 test item protocols and 10,000 results, combined with robust quality control features that automatically chart and store QC data for a year, supports consistent, audit-ready clinical testing. The standard interfaces allow for seamless integration into existing laboratory information systems.

Everyday Home Use

The CONTEC BC300 is not designed for home use. It is a professional-grade clinical device intended for operation by trained personnel in controlled laboratory or clinical settings. Its functions, including the analysis of blood and body fluids, require professional handling, interpretation, and adherence to safety and regulatory standards applicable to medical diagnostics.

Benefits and Buying Value

The value of the BC300 lies in its balance of analytical capability, data management, and operational durability tailored for clinical environments. It offers specific advantages in terms of longevity and straightforward utility.

Reuse and Low Maintenance

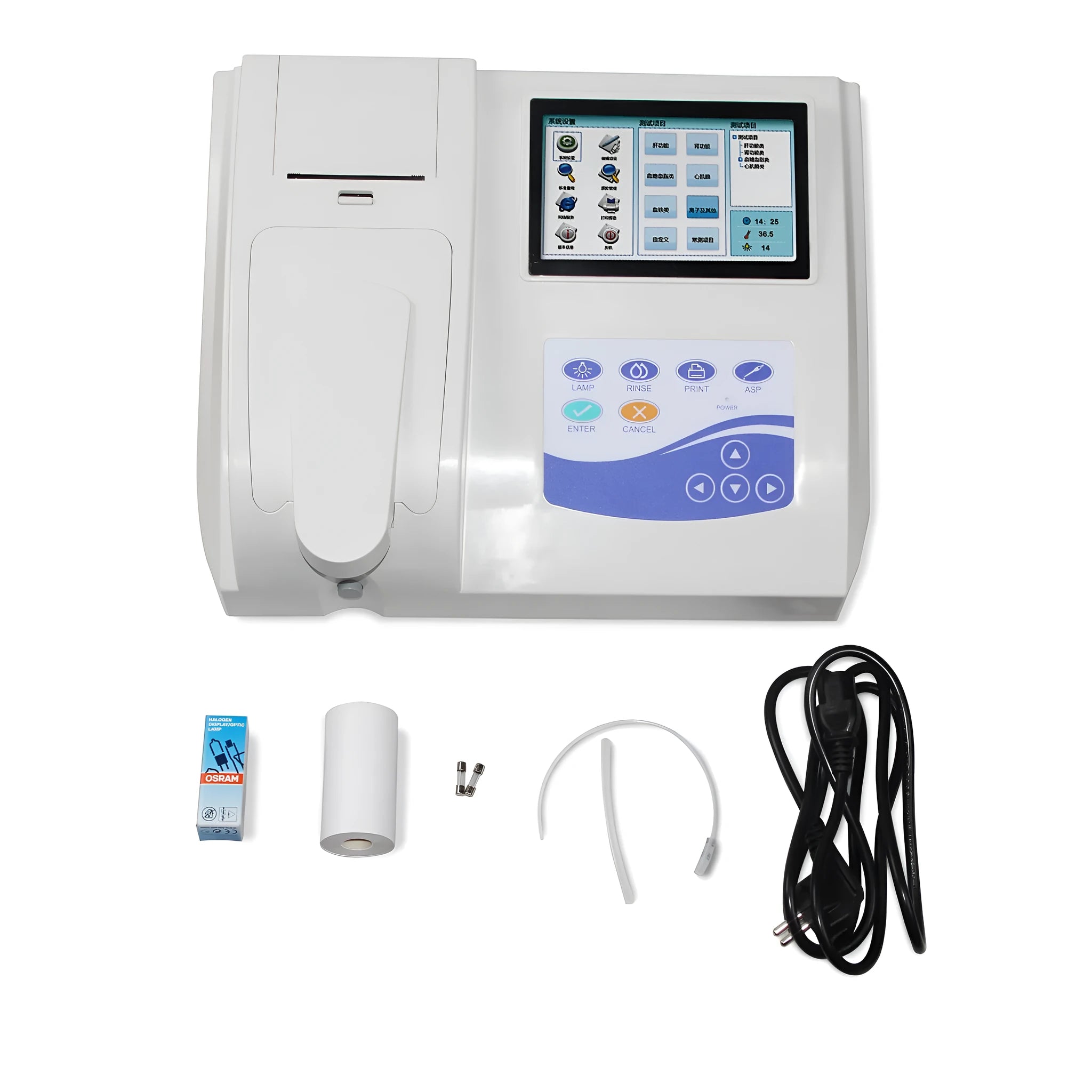

The device incorporates features aimed at extending its operational life and simplifying upkeep. An auto-dormancy function for the halogen lamp helps to prolong the light source's lifespan. Comprehensive self-check routines monitor the light path, liquid path, and mechanical components, providing alarms for failures to facilitate timely maintenance. The inclusion of spare parts like fuses and a spare halogen lamp in the package contents aids in quick replacements, minimising downtime.

Why Choose This Product

The CONTEC BC300 presents a compelling option for laboratories seeking a capable semi-automatic analyser without investing in a larger, fully automated system. Its combination of a touch screen interface, multiple analytical methods (endpoint, kinetics, etc.), substantial data storage, integrated printer, and multi-language support (Chinese, English, Spanish, Portuguese) delivers a high degree of functionality and user convenience. The precise temperature control (±0.1°C) and low cross-contamination rate (≤1.0%) contribute to reliable and accurate results, forming a solid foundation for clinical decision-making.
