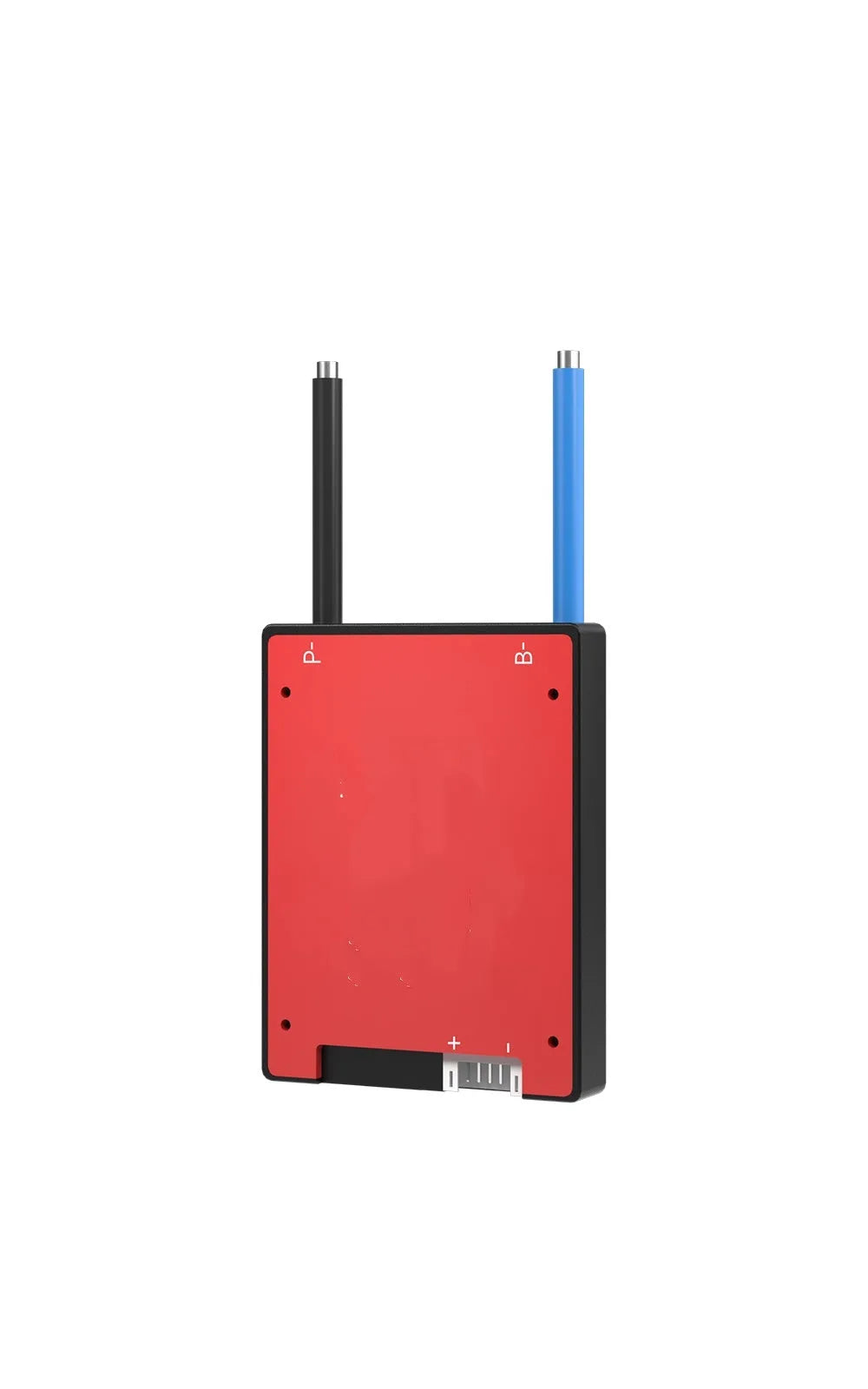

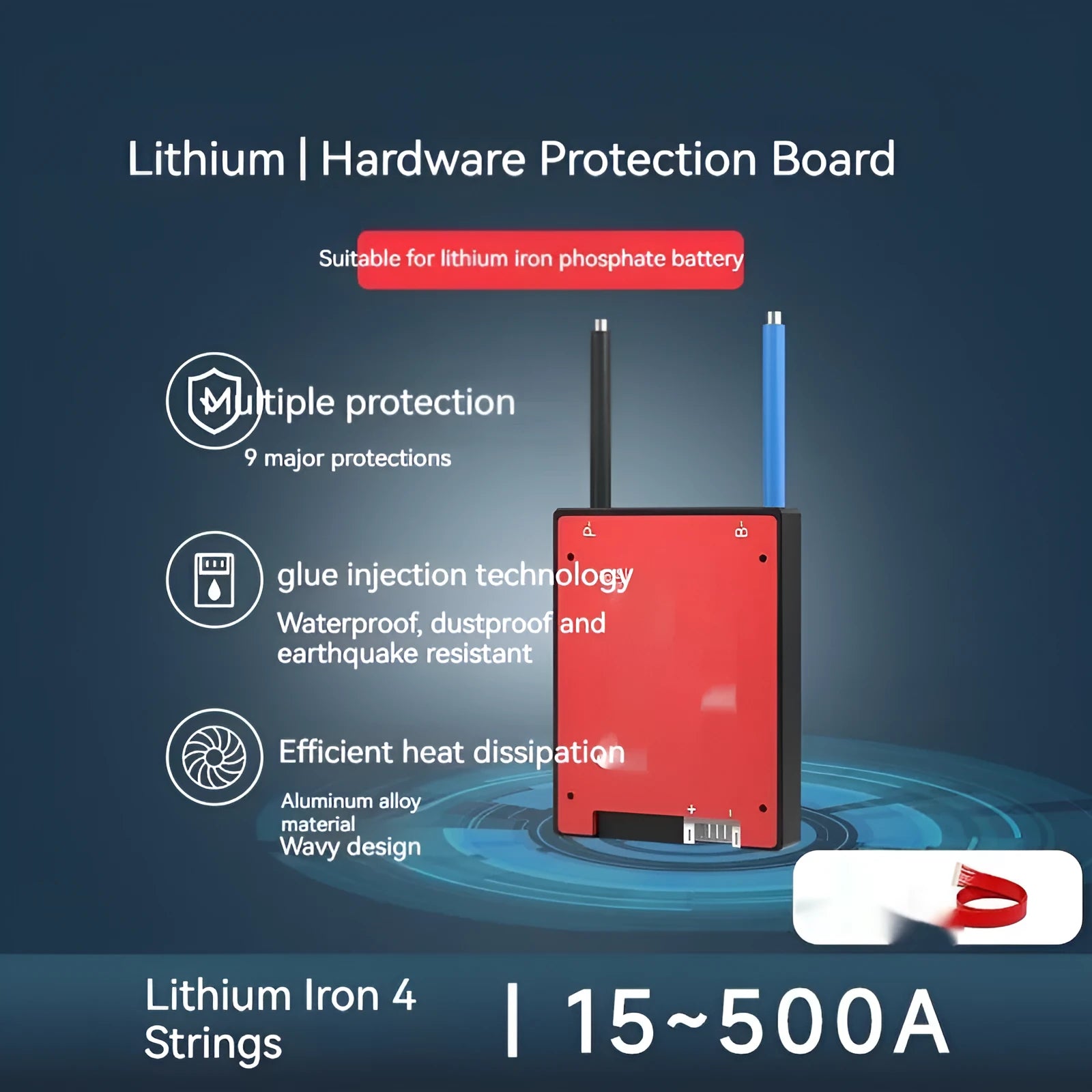

Dali 4S Lithium Iron Phosphate Battery Protection Board with Cell Balancing for 12V Systems

This Dali Battery Management System (BMS) is a dedicated protection and monitoring board for lithium iron phosphate (LiFePO4) batteries configured in a 4-series (4S) arrangement, delivering a stable 12V output. Its primary role is to safeguard the battery pack from conditions that can reduce its lifespan or cause failure, such as over-charging and over-discharging. A key integrated feature is its cell balancing function, which actively works to keep the voltage of each individual cell in the 4S string uniform, promoting consistent performance and maximising the usable capacity of the entire pack. Available in a wide spectrum of continuous current ratings—from 15A suitable for smaller applications up to 500A for high-power demands—it allows for precise matching to your system's requirements. For the higher-current models, an optional integrated cooling fan is available to manage heat generation during sustained operation, aiding in reliability under load.

Features and Construction

The design of this BMS centres on providing comprehensive protection for a specific battery chemistry and configuration. It is engineered exclusively for 4S lithium iron phosphate cells, making it a targeted solution rather than a universal device. The construction revolves around a printed circuit board (PCB) populated with the necessary circuitry for voltage monitoring, control logic, and the cell balancing system.

Material and Build

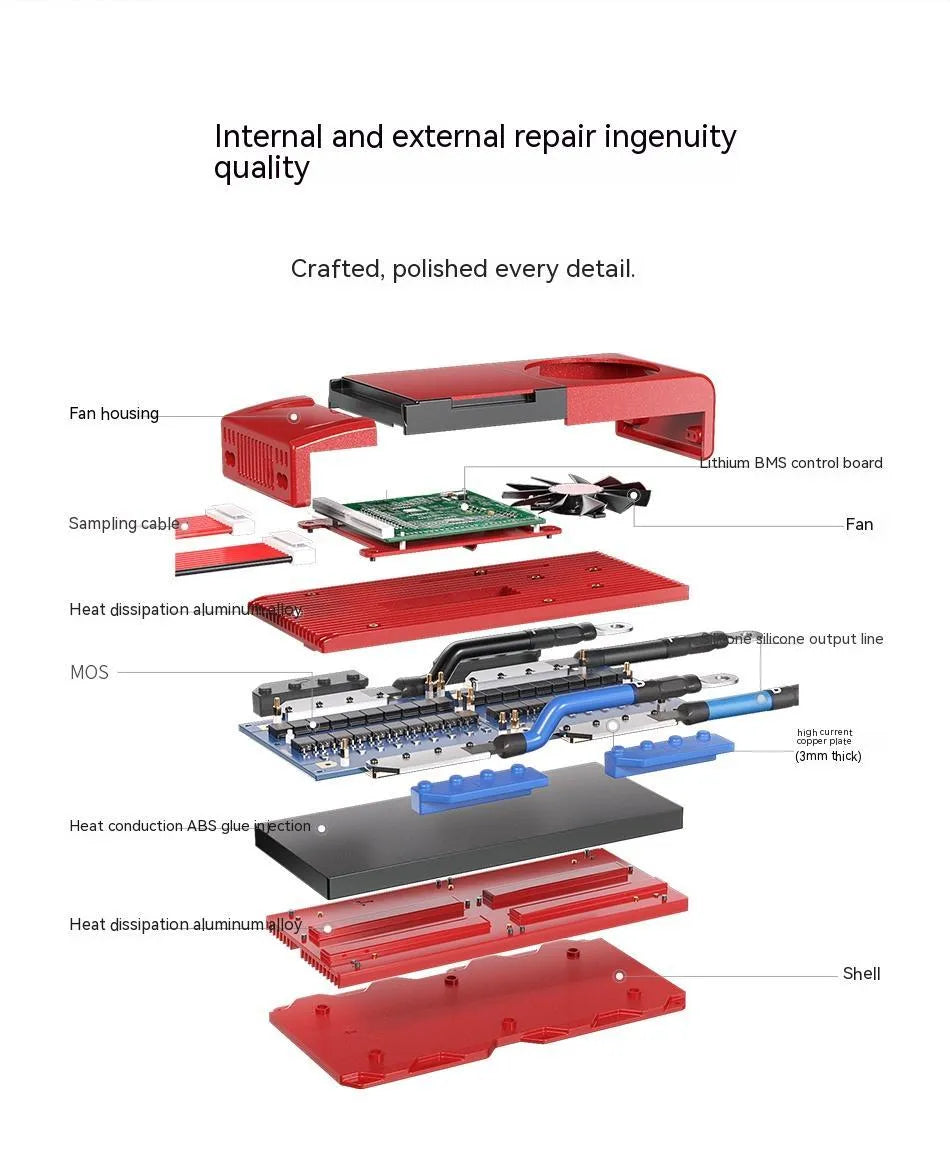

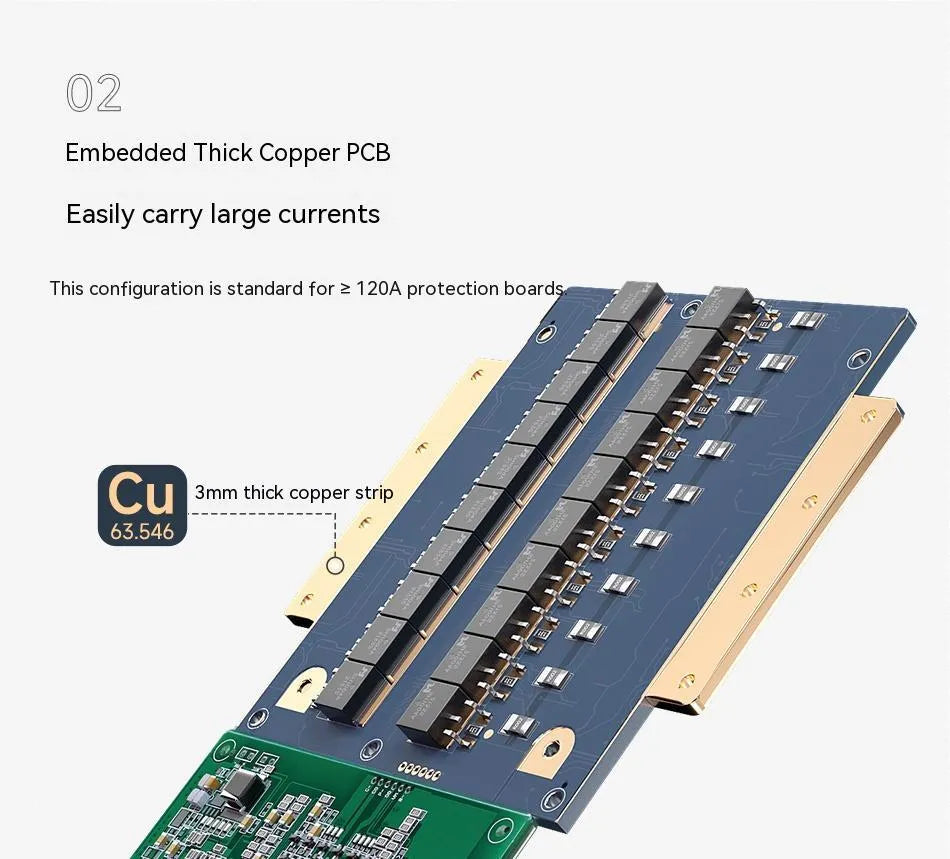

The core component is the PCB, which hosts the electronic components required for the BMS's functions. These include MOSFETs for controlling charge and discharge paths, a microcontroller or dedicated IC for monitoring cell voltages, and balancing resistors or active balancing circuitry. For models listed with a "fan," this indicates an integrated active cooling system is attached to the board, typically to cool the high-current MOSFETs. The source text does not specify details like conformal coating, heatsink material, or connector types.

Size and Practical Fit

The source text provides no physical dimensions for the protection board. Therefore, precise sizing for enclosure or installation planning is not available from the provided data. The practical fit is defined by its electrical configuration: it is designed to connect to four lithium iron phosphate cells wired in series. The "same-port" design is a significant practical feature, meaning the charge and discharge paths share common terminals, which reduces wiring complexity and the number of connection points compared to separate-port designs.

Uses and Placement

This BMS is a critical component in any system where a reliable, protected 12V LiFePO4 battery pack is needed. Its applications span from renewable energy storage and electric vehicles to portable power stations and marine electronics.

Event or Professional Use

In professional or commercial settings, such as powering telecommunications equipment, solar energy storage banks, or electric mobility scooters, the correct current rating is crucial. Selecting a 150A, 200A, or higher model with a cooling fan ensures the BMS can handle peak and continuous loads without overheating, which is vital for system uptime and safety. The balancing function is particularly important in these applications, as it helps maintain pack health over frequent charge-discharge cycles.

Everyday Home Use

For DIY solar projects, caravan or campervan conversions, home backup power systems, or high-end portable power tools, the lower to mid-range current models (e.g., 30A, 40A, 50A, 80A) are often suitable. The BMS provides peace of mind by automatically preventing the battery from being charged at too high a voltage or drained too low, actions which can permanently damage expensive LiFePO4 cells. The balancing feature operates automatically in the background, requiring no user intervention.

Benefits and Buying Value

The value of this BMS lies in its specific design for LiFePO4 chemistry, its integrated balancing, and the wide selection of current ratings. It acts as an insurance policy for your battery investment.

Reuse and Low Maintenance

By preventing harmful operating conditions, the BMS contributes directly to the battery pack's potential for long-term reuse and reduces the need for maintenance or early cell replacement. The passive or active cell balancing mitigates the capacity loss that occurs when cells drift out of sync, a common issue in series-connected packs. This focus on longevity is a core aspect of its value proposition.

Why Choose This Product

When selecting a BMS, matching the specifications to your battery is paramount. This product offers a clear choice for users with 4S LiFePO4 packs. The key decision points are the required continuous current (from 15A to 500A) and whether your application involves sustained high-current draws that would benefit from the active cooling provided by the fan-equipped models. The inclusion of balancing as a standard feature across all models adds significant value compared to basic protection-only boards.
