DC Digital Display Voltmeter and Ammeter with 0-300V Range and Four Current Specifications

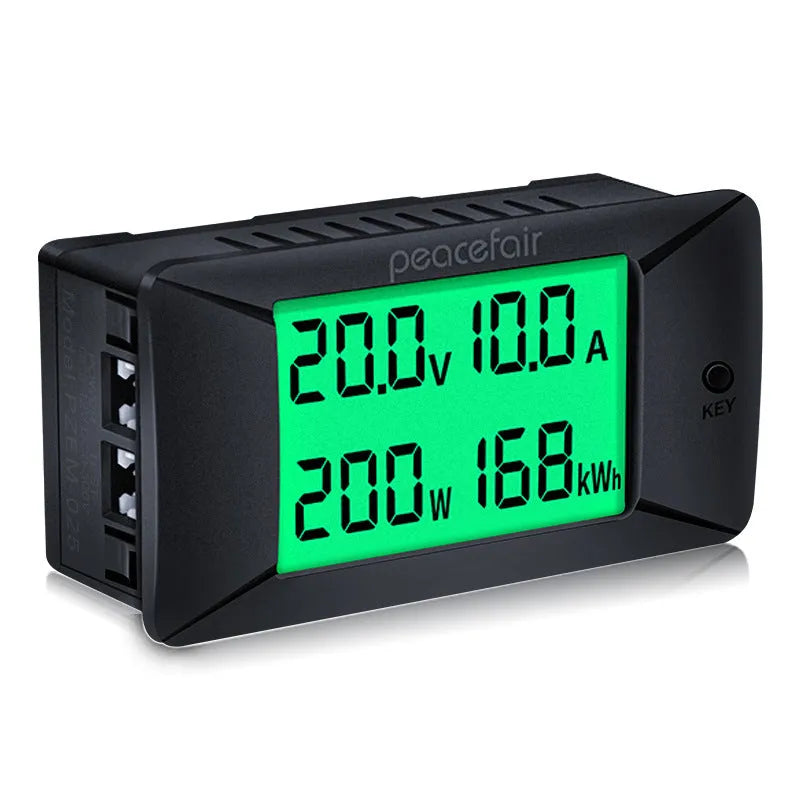

This multifunction DC digital display meter serves as both a voltmeter and an ammeter, designed to monitor voltage and current within DC electrical systems. It provides a clear digital readout for power consumption measurement, helping users track input and output performance. The instrument operates across a 0-300V range for both voltage parameters and functions reliably at normal ambient temperatures. Available in four distinct current-carrying capacities—50A, 100A, 200A, and 300A—it offers a tailored solution for various applications, from smaller projects to more substantial electrical setups. Each variant includes the core host unit and the necessary wiring for connection, with some options providing additional assembly tools.
Features and Construction
The meter integrates voltage and current measurement into a single digital display unit, simplifying panel layout and monitoring. Its construction focuses on delivering clear readings within the specified electrical parameters, with no extraneous features beyond its stated measuring purpose.
Material and Build

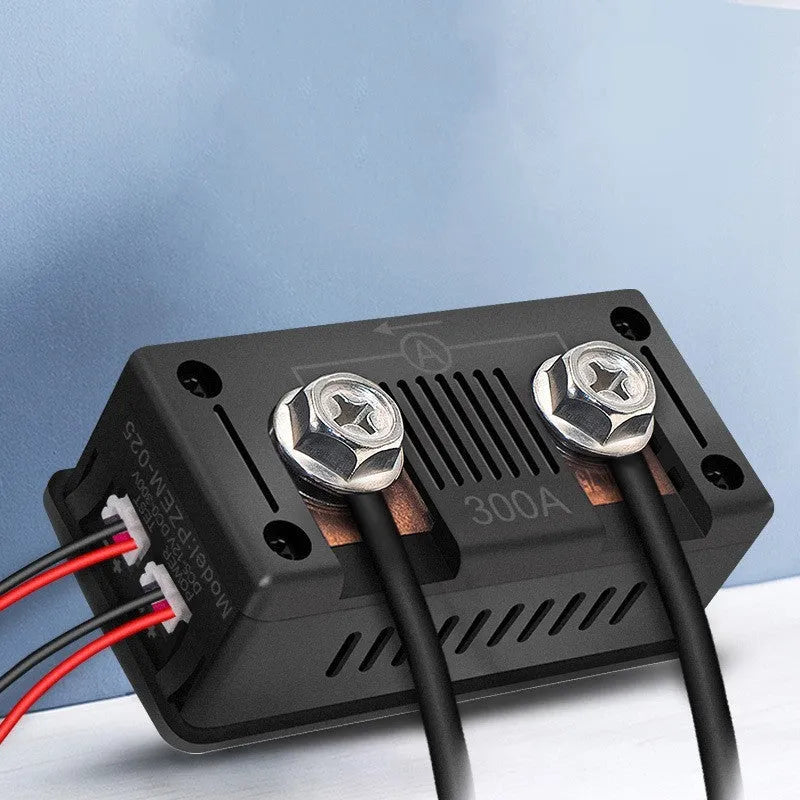

The source text does not specify the exact materials used in the host unit's casing, display, or internal components. It is described as a digital voltage measuring instrument comprising a host, wiring, and for the 50A and 100A versions, a wrench. The build is centred around providing accurate measurement within the 0-300V DC range, with construction appropriate for operation at normal room temperatures without additional environmental sealing or protection claims.
Size and Practical Fit

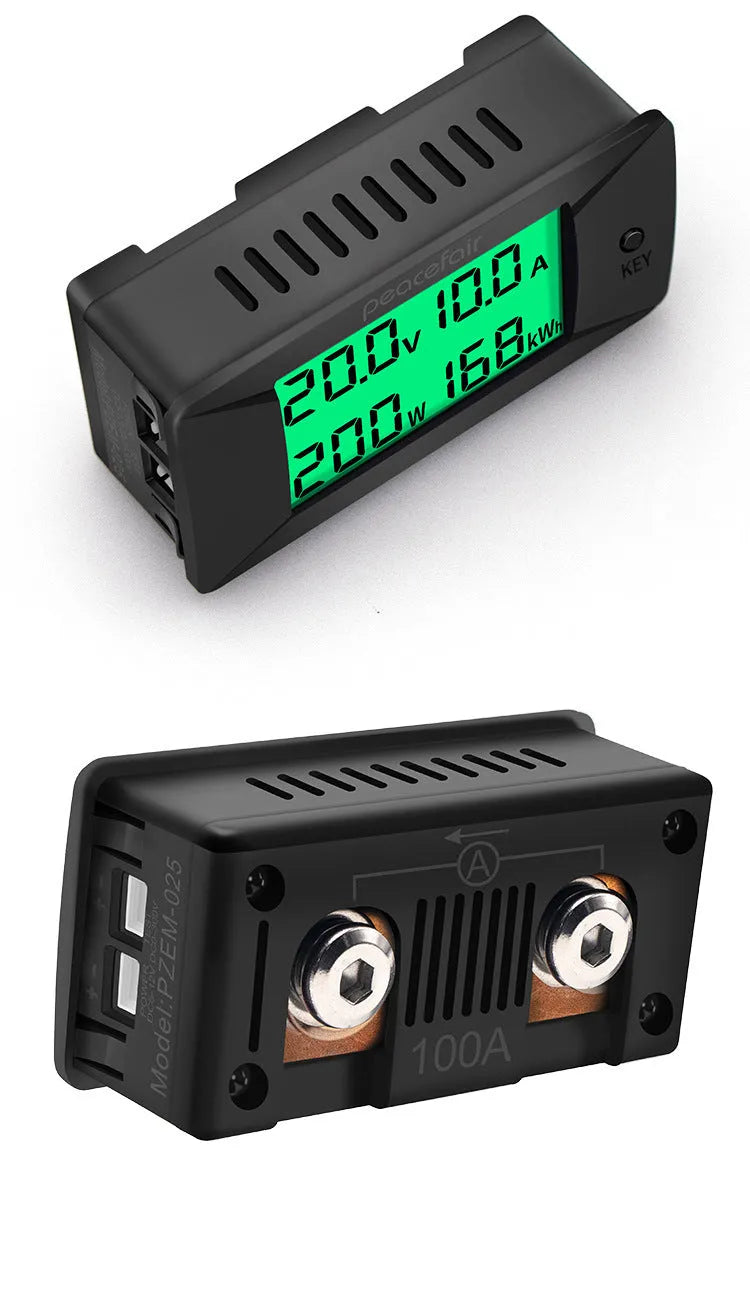

With compact boundary dimensions of 85.3 mm in width, 44 mm in height, and 40.2 mm in depth, the meter is designed to fit into standard panel cut-outs or enclosures where space may be limited. This panel size allows for efficient use of real estate on control boards or electrical cabinets. The product's physical footprint is consistent across all four current specifications, meaning the same panel cut-out can be used regardless of whether you select the 50A, 100A, 200A, or 300A model.
Uses and Placement
This instrument is suited for any scenario requiring monitoring of DC voltage and current, providing a dual-function display that eliminates the need for separate meters. Its application is defined by its electrical specifications and the practical inclusion of necessary components for installation.
Event or Professional Use
In professional, workshop, or industrial settings, this meter can be integrated into DC power supplies, battery banks, solar charge controllers, or motor control panels to provide real-time feedback on system performance. The availability of four current ratings (50A, 100A, 200A, 300A) allows it to be matched to the specific capacity of the circuit, from lower-current control systems to higher-power applications. The inclusion of wiring with each unit facilitates immediate connection, supporting efficient installation by technicians.
Everyday Home Use
For hobbyists, DIY enthusiasts, or homeowners with DC systems such as off-grid solar setups, caravan electrical systems, or custom battery projects, this meter offers a straightforward way to monitor voltage and current. The digital display provides an easy-to-read indication of power consumption and system health. Choosing the appropriate current specification (e.g., 50A for smaller battery banks) ensures the meter is adequately rated for the application. The compact size allows it to be neatly installed in project boxes or small control panels.
Benefits and Buying Value
The value of this product lies in its combined measurement functions, choice of specifications, and the practical inclusion of installation components. It addresses the need for reliable DC monitoring without requiring separate purchases for voltage and current measurement.
Reuse and Low Maintenance
As a digital electronic instrument with no stated consumable parts, it is designed for ongoing use once installed. Maintenance requirements are not specified, but operating within its stated 0-300V range and normal temperature conditions will support continued function. The robust inclusion of wiring with each unit means all necessary connection components are provided from the outset, reducing the need for additional purchases or sourcing compatible cables.
Why Choose This Product
Select this DC digital display voltmeter and ammeter for its clear dual-functionality, the flexibility offered by four current ratings, and its compact 85.3 x 44 x 40.2 mm panel size. It provides a complete monitoring solution, as each specification includes the host and wiring required for operation. The 50A and 100A options offer added convenience with an included wrench for assembly. By covering both voltage and current measurement in one unit, it simplifies panel design and provides essential data for managing DC power systems effectively.
