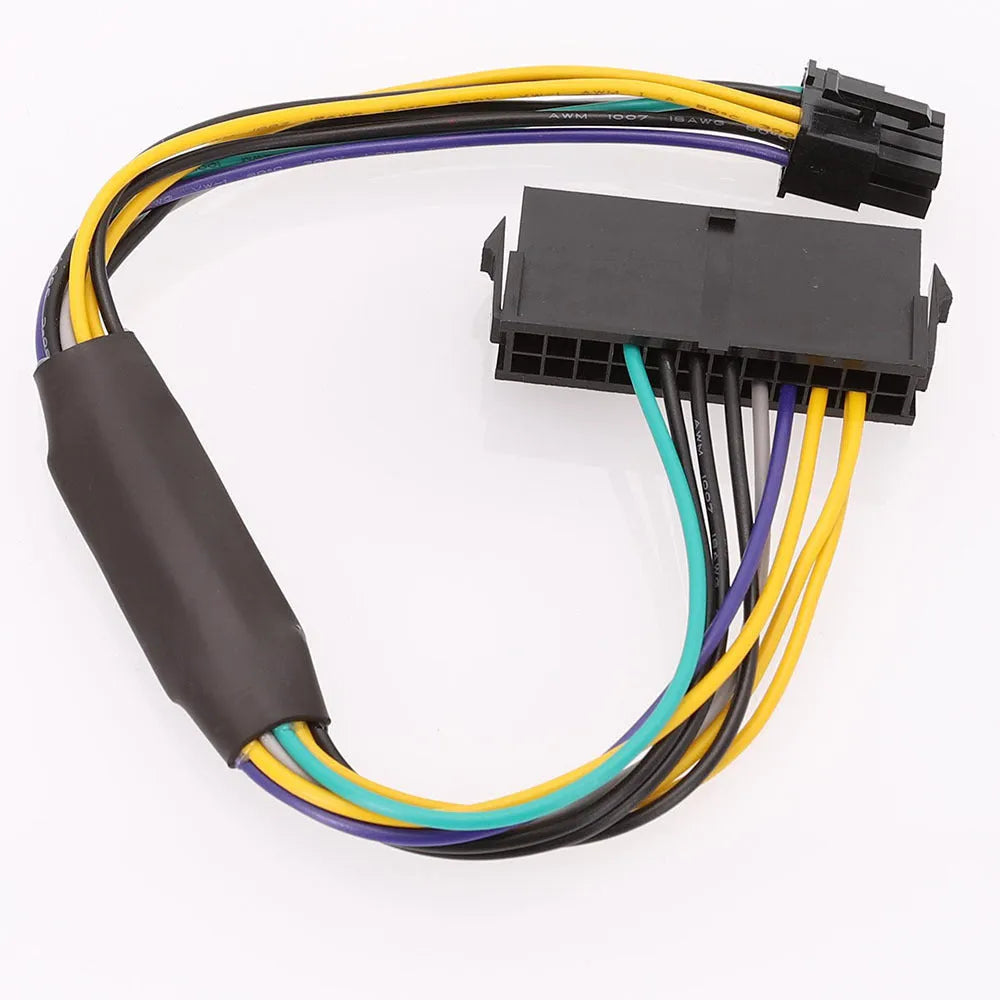

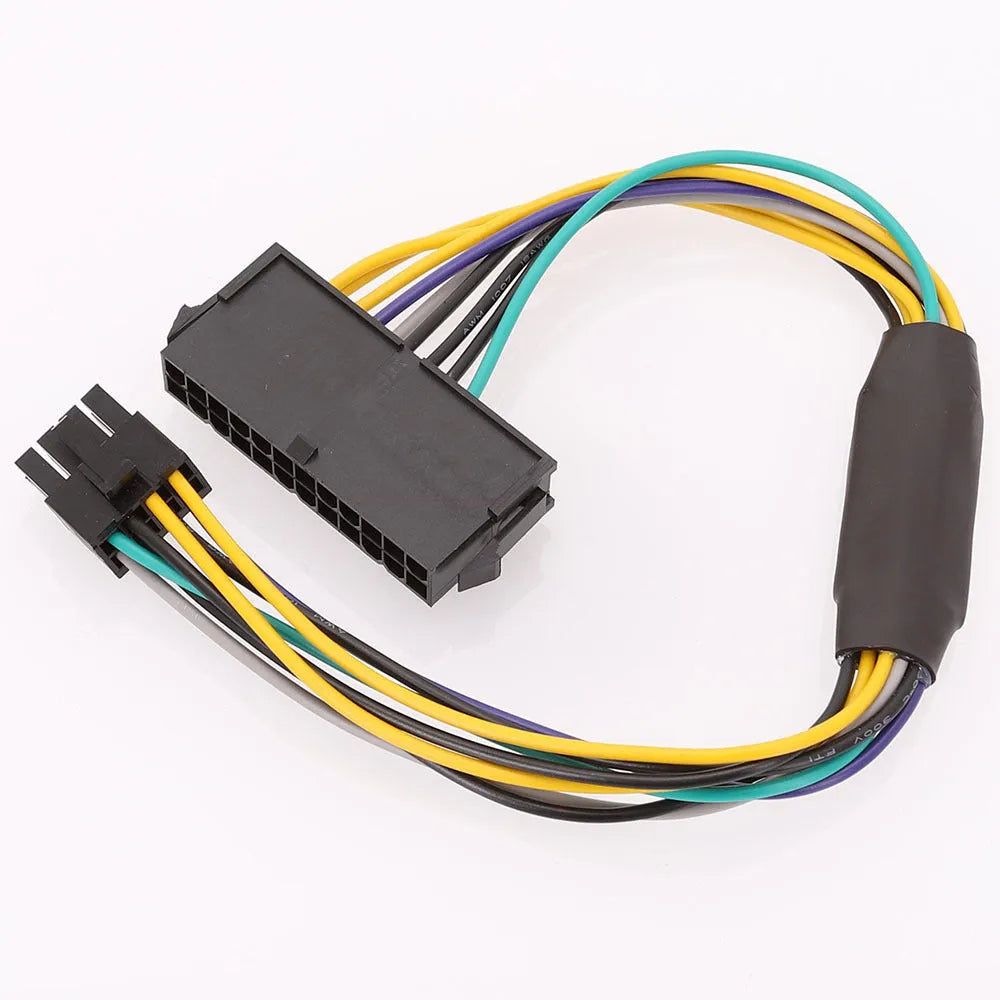

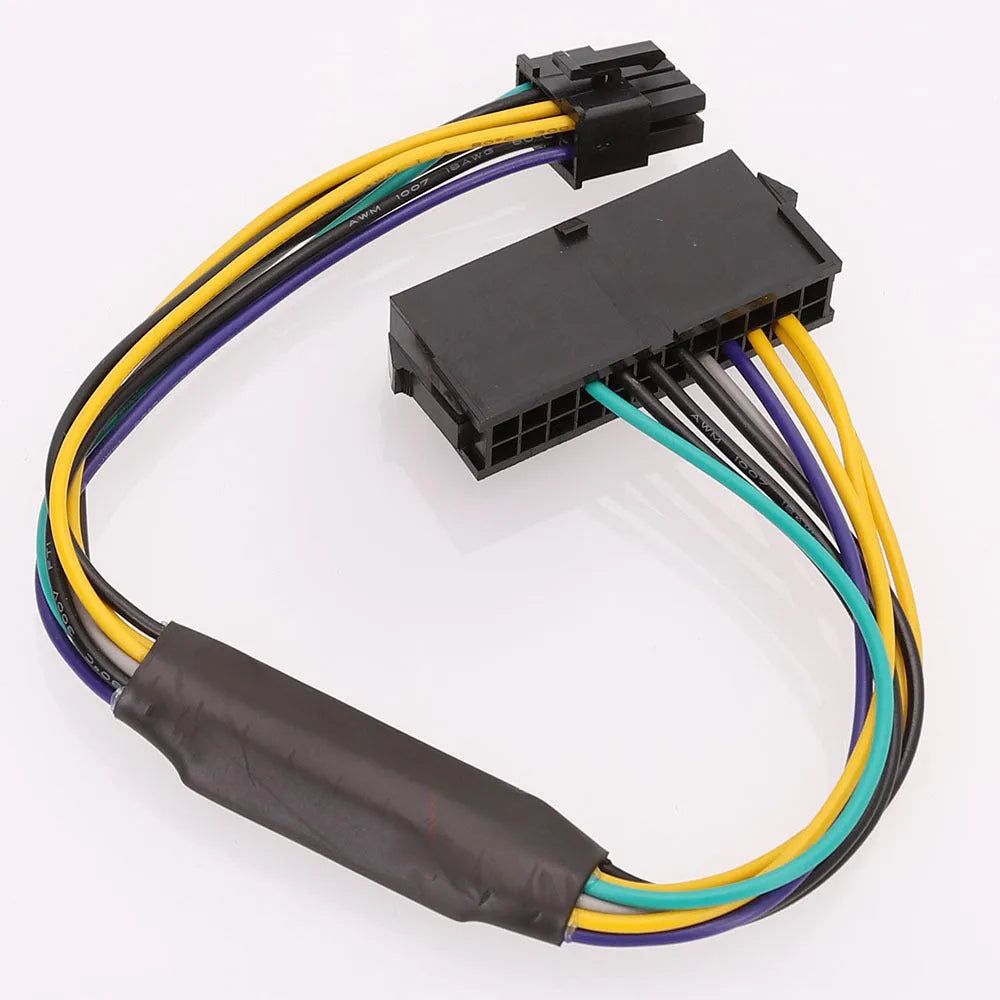

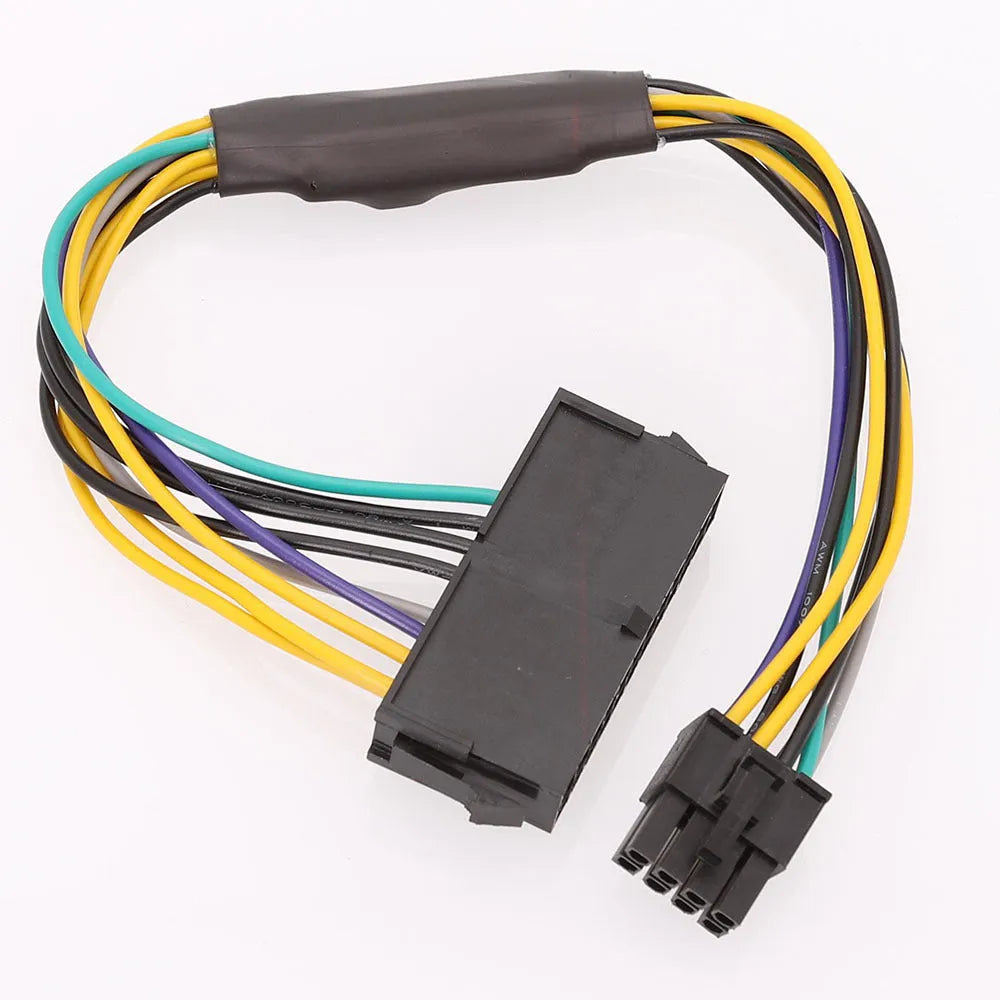

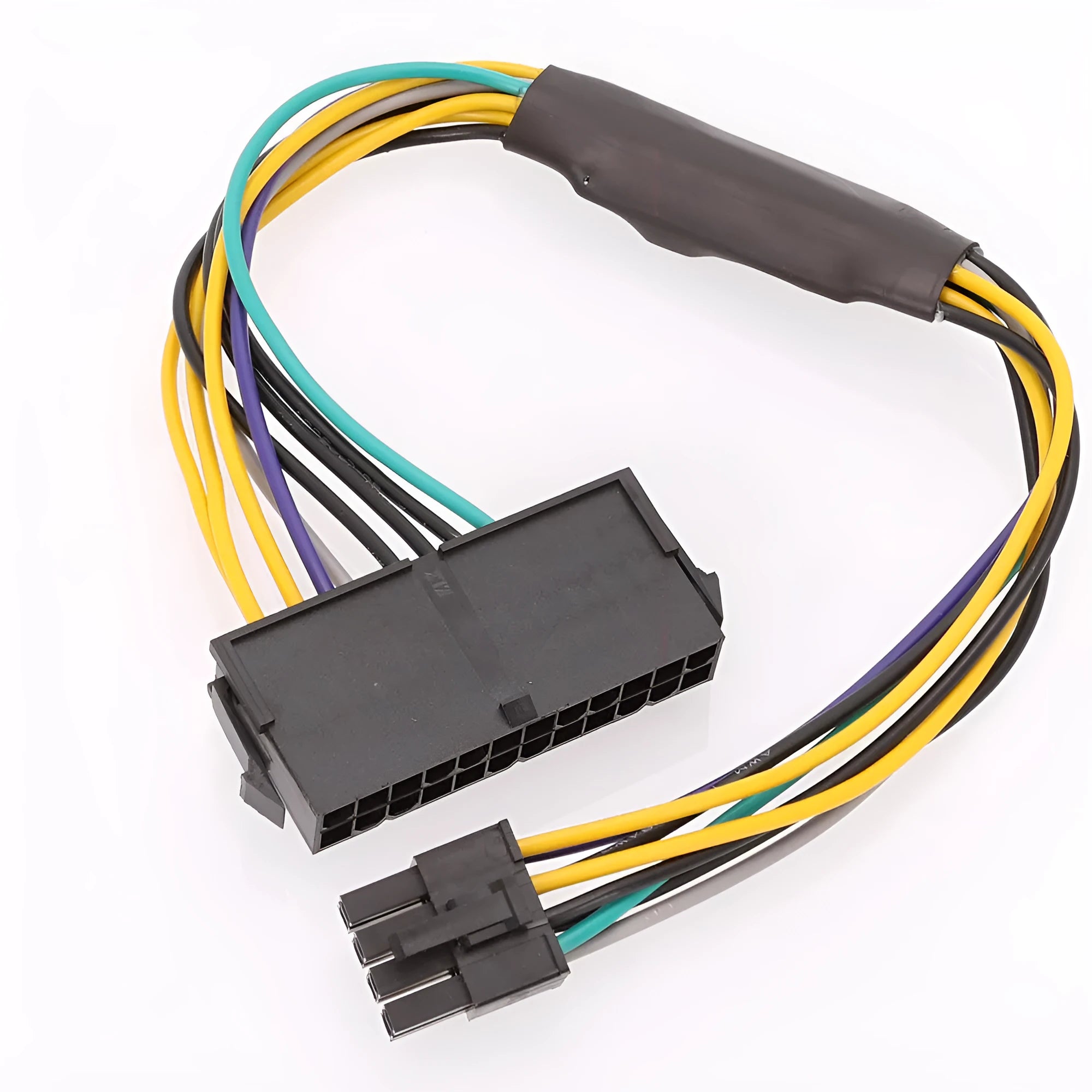

ATX 24P to 8P Power Adapter Cable for DELL Optiplex 3020 7020 9020 and T1700 Motherboards

This specific adapter cable is designed to bridge a common compatibility gap in PC building and upgrading. It allows you to use a widely available standard ATX 24-pin power supply unit with DELL Optiplex desktop motherboards that feature a proprietary 8-pin main power header. This is particularly relevant for users upgrading the power supply in a DELL Optiplex system, repairing a unit, or building a system using a DELL motherboard in a custom chassis. The cable provides a direct, reliable connection, supporting a broad spectrum of DELL chipsets and high-power applications, making it a focused solution for a precise technical requirement.

Features and Construction

This cable is built for a single, clear purpose: converting a standard ATX power connection for use with specific DELL motherboards. Its construction and specifications are geared towards ensuring stable power delivery and physical compatibility within a PC case.

Material and Build

The cable is manufactured using all-copper tinned wire. The core conductor is 18AWG positive standard wire, featuring a 0.18x34 copper core construction. This specification is chosen to handle substantial electrical current, with the product supporting power supplies up to 1000W. The tinning on the copper helps resist corrosion and can improve solderability and longevity in the connection. The connectors are designed to mate precisely with a standard ATX 24-pin power supply output on one end and the 8-pin header on compatible DELL motherboards on the other.

Size and Practical Fit

The cable has a total length of 30cm (approximately 11.8 inches). This length is selected to provide enough slack for tidy cable management inside a standard mid-tower or desktop computer chassis, allowing the power supply to be positioned typically without creating tension on the connection. The cable itself has a single item weight of 42g, indicating a relatively lightweight and flexible design that won't strain the motherboard header. The colour option available is black, which is a neutral choice that blends with most internal components and case aesthetics.

Uses and Placement

This adapter cable serves a niche but essential role in various computing scenarios, from professional IT environments to home enthusiast projects. Its use is defined by the specific hardware compatibility it enables.

Event or Professional Use

In professional settings like office IT departments, repair shops, or system integrators, this cable is a valuable part for maintaining or upgrading legacy DELL Optiplex systems (3020, 7020, 9020, T1700). It allows for the replacement of a failed original power supply with a more readily available and potentially higher-wattage standard ATX unit, extending the life of the hardware. It also supports the use of DELL motherboards in custom builds for specific client needs, such as creating a workstation from repurposed corporate hardware.

Everyday Home Use

For home PC enthusiasts and DIY builders, this cable unlocks possibilities. It enables the upgrading of a pre-built DELL Optiplex with a more powerful graphics card by allowing the installation of a higher-wattage ATX power supply to provide the necessary extra power. It is also useful for building a compact or budget-friendly PC using a salvaged DELL motherboard, as it removes the dependency on finding a rare proprietary power supply. The clear compatibility list helps users confidently match the cable to their existing or planned hardware.

Benefits and Buying Value

The value of this product lies in its specificity and the practical problems it solves, rather than aesthetic or multi-purpose features. It is a component that enables other upgrades and repairs.

Reuse and Low Maintenance

This cable promotes hardware reuse. By providing compatibility between standard and proprietary connectors, it allows older DELL motherboards to remain functional with modern, standard power supplies. This can reduce electronic waste and save costs compared to sourcing an original equipment manufacturer (OEM) replacement power supply. The robust all-copper construction is designed for a reliable, set-and-forget installation, requiring no ongoing maintenance once correctly fitted.

Why Choose This Product

You would choose this product if you have a confirmed need to connect a standard ATX power supply to a DELL Optiplex 3020, 7020, 9020, T1700, or compatible H61/H81/Q87/B75-series motherboard. Its value is its focused compatibility, stated support for high-power (1000W) applications, and the practical 30cm length. It is a straightforward component that performs one task well, based on the provided specifications for wire gauge, core construction, and connector type. Before purchase, ensure your power supply is ATX standard and your chassis can fit it, as noted in the instructions.
