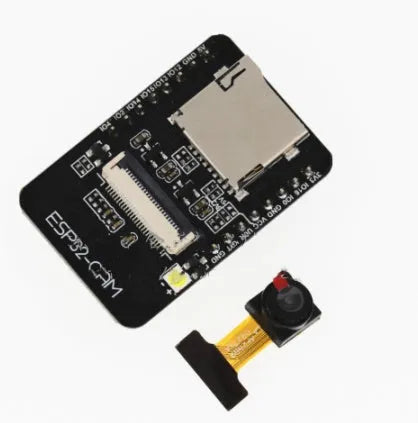

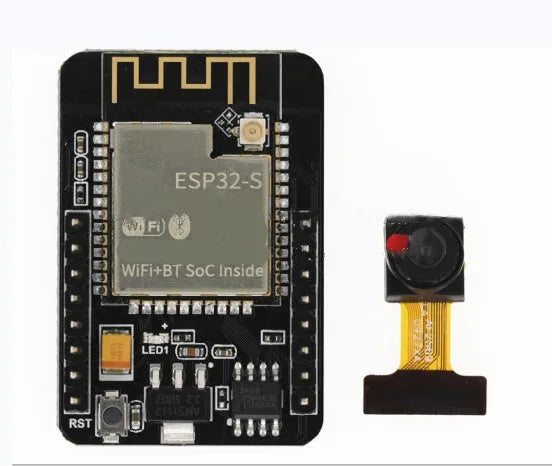

ESP32-CAM Camera Development Board with WiFi and Bluetooth for IoT Applications

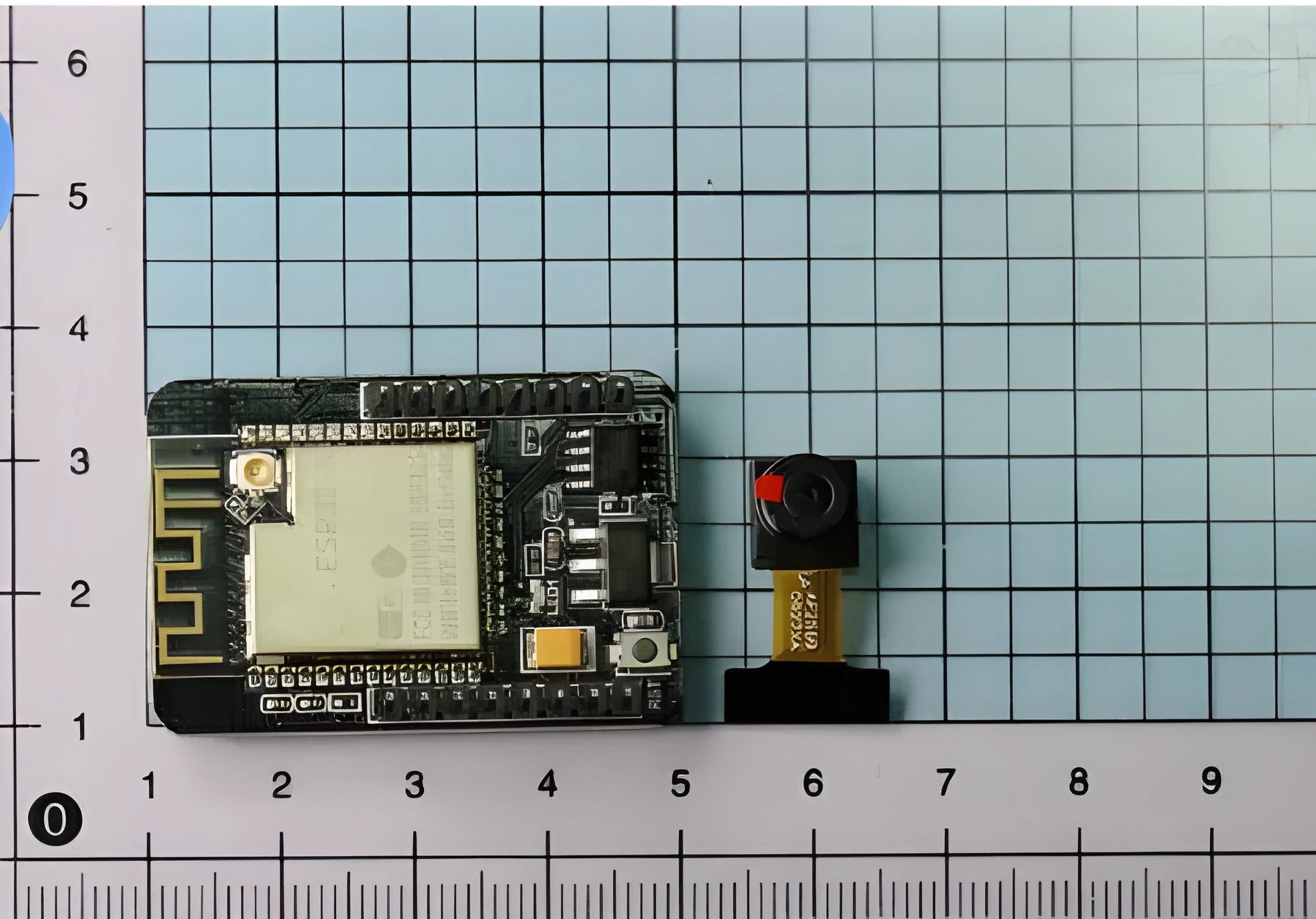

The ESP32-CAM is a compact camera module that combines WiFi and Bluetooth connectivity with a low-power dual-core processor, making it a practical choice for wireless IoT projects. With dimensions of only 27 x 40.5 x 4.5mm, this board fits into tight spaces while offering powerful performance. It supports both OV2640 and OV7670 cameras, includes a built-in flash, and allows WiFi image uploads for remote monitoring. The deep sleep current of just 6mA ensures battery-friendly operation, ideal for always-on sensing and control applications.

Features and Construction

This development board integrates a complete system on a single small module, including a CPU, memory, wireless connectivity, and camera interface. Its DIP package enables fast direct connection to a backplane for production.

Processor and Memory

The ESP32-CAM uses a low-power dual-core 32-bit CPU running up to 240MHz, delivering up to 600 DMIPS for application processing. It features 520 KB built-in SRAM and an external 4M PSRAM, providing enough memory for complex IoT tasks such as image capture and wireless data transmission.

Wireless and Connectivity

Supporting 802.11b/g/n WiFi and BT/BLE, the module offers flexible wireless options through STA, AP, or STA+AP working modes. It also includes Smart Config and AirKiss one-click distribution network for easy setup, and supports serial local upgrades as well as remote firmware upgrades (FOTA).

Camera and Storage

Compatible with OV2640 and OV7670 cameras, the board has a built-in flash and supports WiFi image uploads. It also includes a TF card slot for local storage of images and data, making it suitable for wireless monitoring and QR code recognition tasks.

Uses and Placement

Designed for the Internet of Things, the ESP32-CAM fits well in home smart devices, industrial wireless control, wireless monitoring, and QR wireless identification systems.

Smart Home and Industrial Control

Use the board to build wireless sensors, smart doorbells, or remote monitoring stations. Its low-power modes and small size make it easy to integrate into existing systems, while the WiFi and Bluetooth connectivity allows control from anywhere.

Wireless Monitoring and Positioning

The camera module can capture images and stream them over WiFi, enabling real-time monitoring. It is also useful for wireless positioning system signals, thanks to its dual-core processing and network stack (Lwip and FreeRTOS).

Benefits and Buying Value

The ESP32-CAM offers a complete, small-form-factor solution for adding wireless camera capabilities to IoT projects. Its low power consumption, multiple sleep modes, and support for FOTA updates reduce maintenance and extend device life.

Low Power and Flexibility

With a deep sleep current of only 6mA and support for multiple sleep modes, the module is designed for battery-powered applications. The ability to upload images over WiFi and store data on a TF card adds flexibility for remote or unattended use.

Easy Integration and Fast Production

The DIP package allows direct plug-in to a backplane, simplifying assembly and improving reliability. This makes the ESP32-CAM a practical choice for both prototyping and volume production in IoT hardware terminals.
