MC4 Photovoltaic Extension Cable with Tinned Copper Core and Low-Smoke Halogen-Free Sheath

This MX-Photovoltaic Extension Cord is engineered for use in new energy applications, specifically solar photovoltaic (PV) systems. It serves as a dedicated connection cable between solar panels, combiner boxes, or inverters. The cable is manufactured as a single-core design, with a tinned copper wire at its centre for optimal electrical conductivity. The outer insulation is constructed from a specialised low-smoke and halogen-free material, a key safety feature that reduces the emission of toxic fumes and corrosive gases in the unlikely event of a fire. It is rated for use in medium and low-voltage power cable applications up to 35 kV, making it suitable for the DC side of typical residential and commercial solar installations.

Features and Construction

This solar extension cable is built with specific materials and dimensions to meet the demands of photovoltaic systems. Its construction focuses on reliable performance and installation safety.

Material and Build

The core conductor is made from tinned copper wire. The tinning process applies a thin layer of tin over the copper, which helps to prevent oxidation and corrosion over time, maintaining a stable electrical connection. The cable's sheath is made from a low-smoke, halogen-free (LSHF) insulation material. This is a practical safety consideration, as LSHF materials are designed to produce minimal smoke and no halogen-based acidic gases when exposed to high heat or flames, contributing to a safer installation environment.

Size and Practical Fit

The cable is available with two key specifications for cross-sectional area: 4mm² and 6mm². This allows you to select the appropriate gauge based on the current (amperage) your specific solar circuit requires. The maximum outer diameter of the cable ranges from 2.5mm to 6mm, which includes the insulation. To facilitate installation, the cable is offered in five convenient, pre-cut lengths: 1 metre, 2 metres, 3 metres, 5 metres, and 10 metres. This eliminates the need for cutting and preparing cable on-site for standard connection distances.

Uses and Placement

This cable is designed for a specific role within renewable energy systems, providing a reliable link between key components.

Event or Professional Use

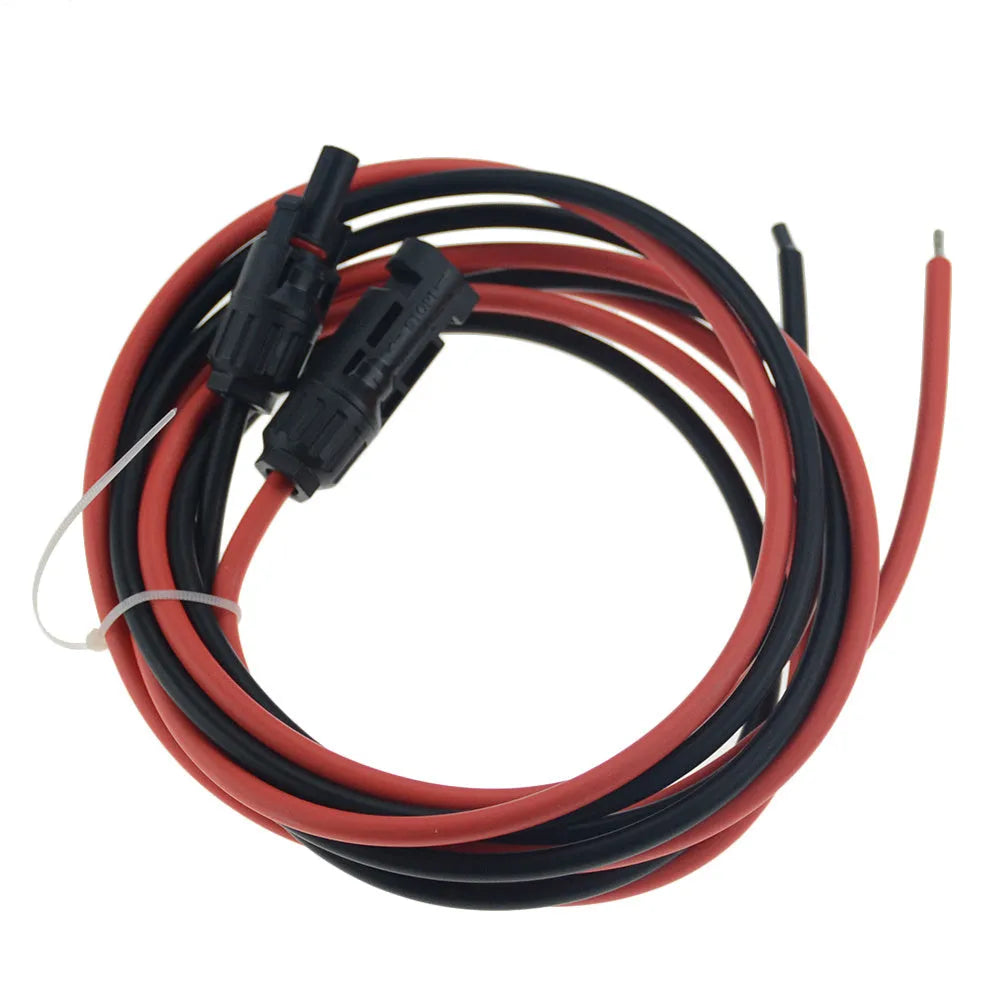

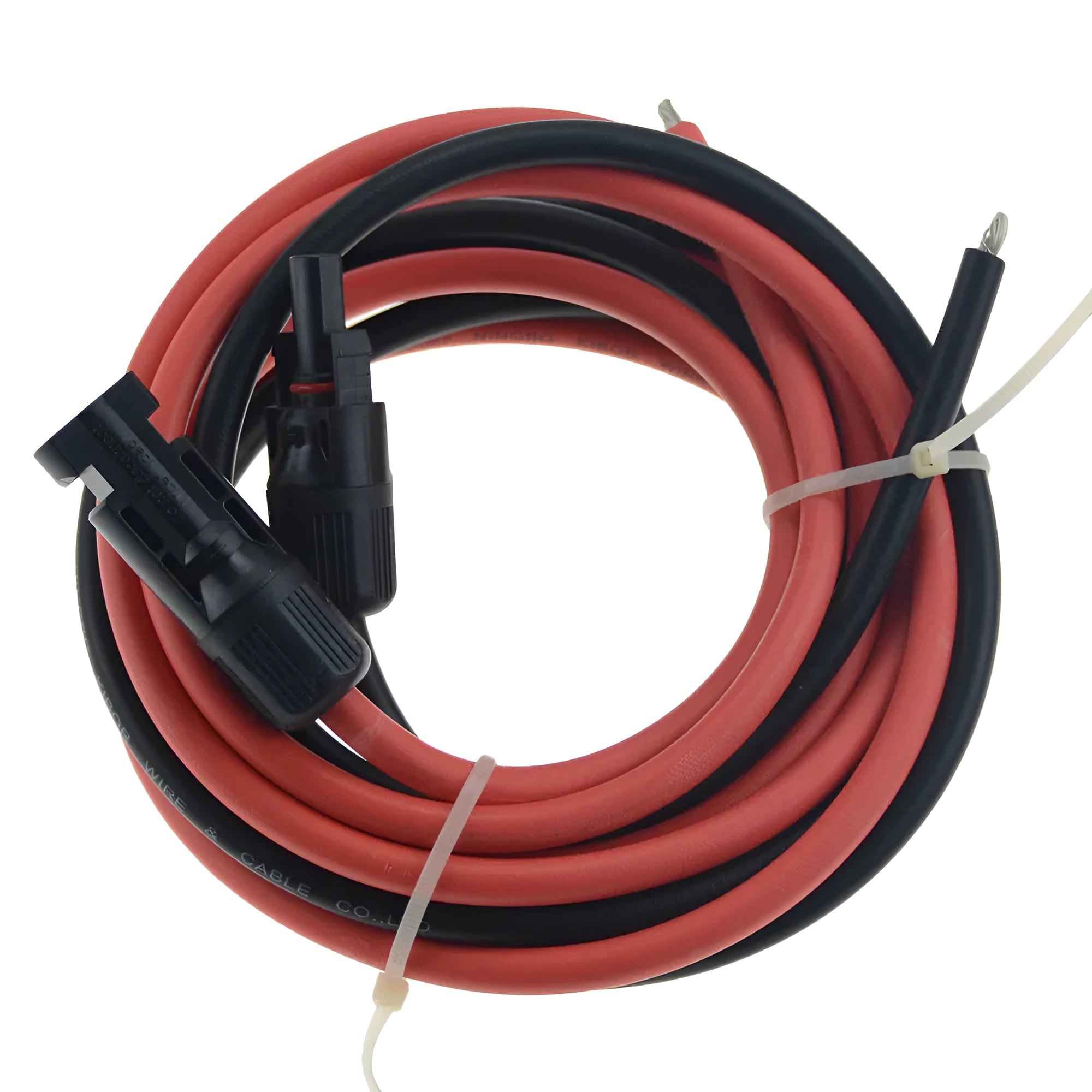

For professional solar installers, this pre-cut cable with MC4 connectors saves valuable time on commercial or large residential PV projects. The availability of multiple lengths (1M to 10M) allows for precise planning and neat cable management between panel strings and combiner boxes. The standard black and red colour coding aids in quick and accurate polarity identification during installation, reducing the risk of wiring errors.

Everyday Home Use

For the DIY solar enthusiast or homeowner extending an existing system, this cable provides a ready-to-use solution. Whether you need a short 1-metre jumper to connect two panels in close proximity or a 10-metre run to connect an array to a remote inverter, the pre-attached MC4 connectors mean you can make the connection securely without specialised crimping tools. Choosing the correct 4mm² or 6mm² size ensures your home system operates efficiently and within safe electrical parameters.

Benefits and Buying Value

The value of this photovoltaic cable lies in its specification-matched design and practical formatting for solar applications.

Reuse and Low Maintenance

The tinned copper core is intended to provide a long-lasting, corrosion-resistant connection, which supports the multi-decade lifespan expected from a solar PV system. The robust LSHF sheath offers protection against environmental factors and enhances safety, contributing to low-maintenance, reliable performance over time.

Why Choose This Product

This cable offers a practical, off-the-shelf solution for solar connections. The combination of tinned copper, safety-focused LSHF insulation, standard solar colours, and a choice of two common cross-sections (4mm² and 6mm²) means it is purpose-built for the task. The option of five different pre-cut lengths provides immediate flexibility, allowing you to purchase exactly the length you need without waste or the hassle of custom cutting.
