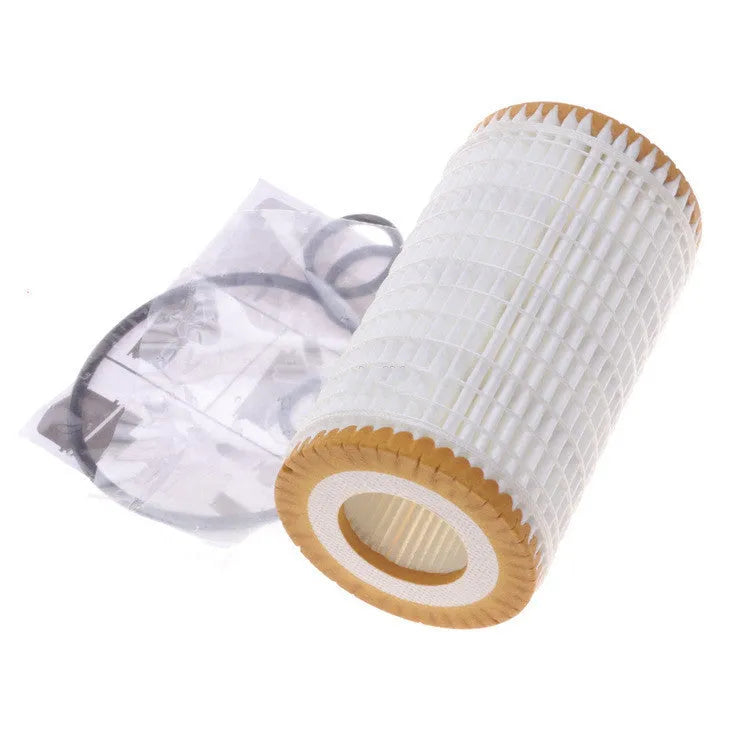

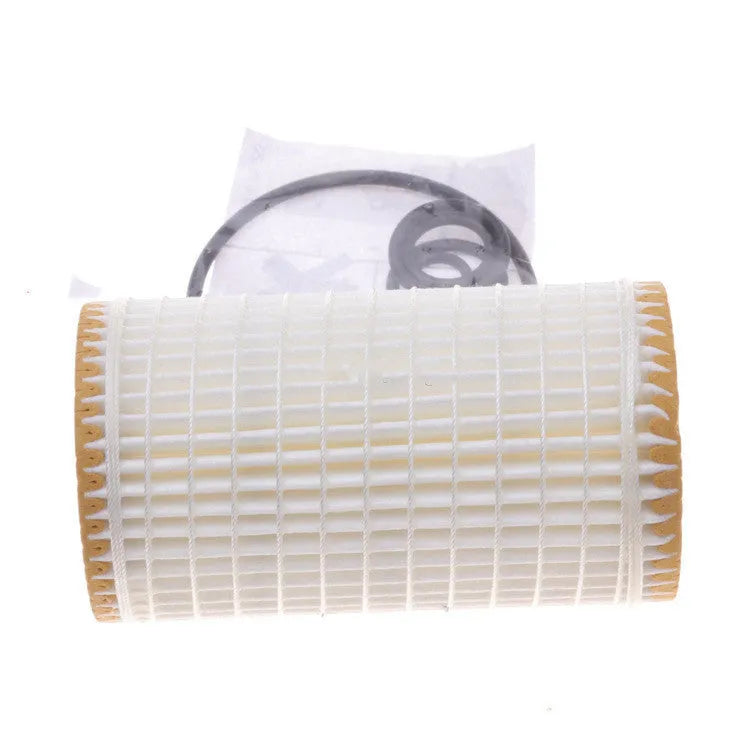

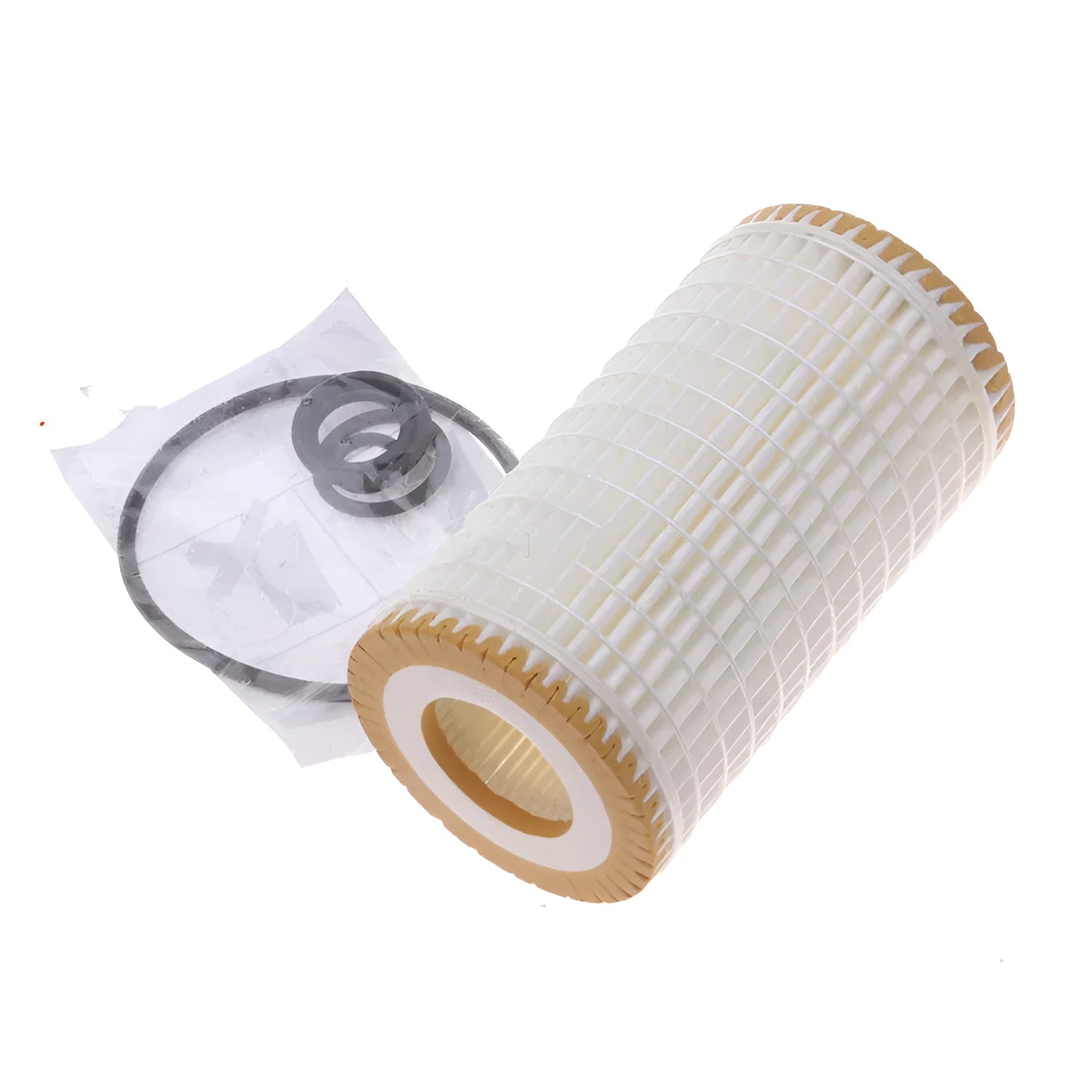

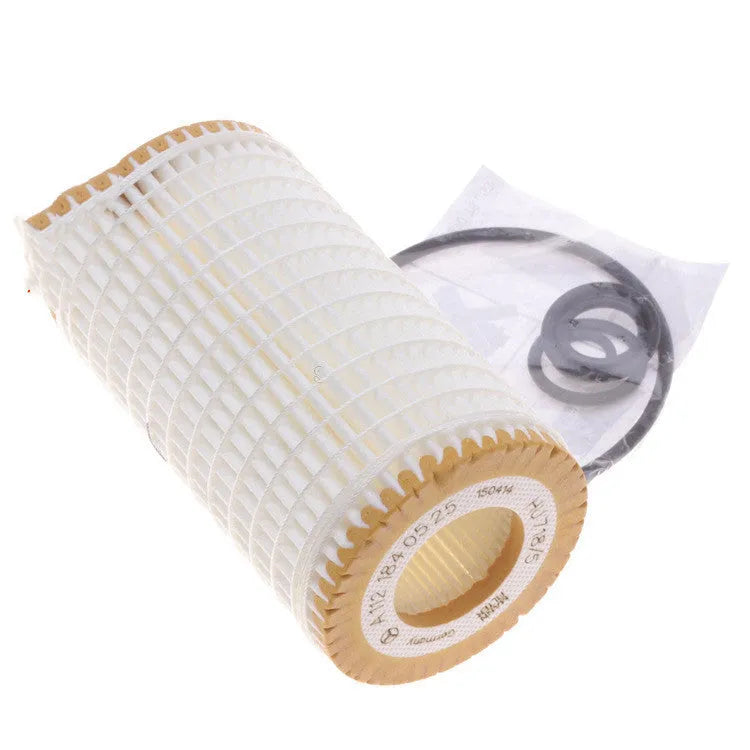

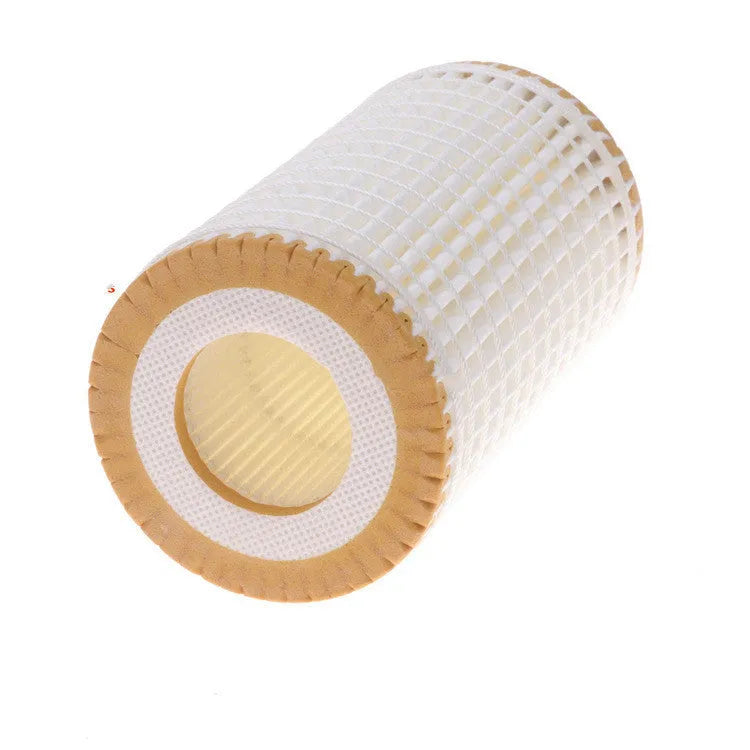

HU718 5X Oil Filter: 10µm Accuracy for Lubricating Oil with 10mm Inlet/Outlet

The HU718 5X is a dedicated oil filter engineered for the specific task of removing impurities from lubricating oil. Its core purpose is defined as maintaining oil cleanliness within a system, a function critical for protecting downstream components. Key operational parameters are clearly stated: it functions within a working temperature of up to 100°C and can withstand a maximum working pressure difference of 10MPa. The filtration standard is specified as a 10µm filtering accuracy, providing a measurable benchmark for its contaminant removal capability. Its physical connection point is a 10mm inlet and outlet diameter, a concrete specification for integration. Performance is described with the terms waterproof, low temperature resistance, and anti-static, though the exact testing standards or thresholds for these properties are not detailed in the source material.

Features and Construction

The filter’s design centres on its internal element and its operational limits. It is built to perform under defined thermal and pressure conditions, with specific measurements provided for its key interfaces.

Material and Build

The filtration core is a wire wound filter element constructed from polyester mesh. This material choice forms the physical barrier responsible for achieving the stated 10µm filtering accuracy. The wire wound configuration suggests a pleated or coiled structure that provides the stated filter area of 10, though the unit for this area measurement is not provided. The construction is associated with the listed performance traits of being waterproof, offering low temperature resistance, and having anti-static properties.

Size and Practical Fit

The primary dimensional specification for installation is the 10mm inlet and outlet diameter. This measurement is crucial for ensuring the filter can be correctly plumbed into an existing or new lubricating oil system. The model is explicitly identified as HU718 5X with an additional model number 1121800009 for precise identification. No external housing dimensions or overall weight are provided, so fitting should be planned based on the known connection size and an allowance for the filter body.

Uses and Placement

This filter has a clearly defined application scope, being intended for use with lubricating oil. Its placement is within any system where maintaining the purity of this oil is required, acting to trap particulates at 10µm and above.

Event or Professional Use

In professional, industrial, or automotive contexts, this filter serves a maintenance and protection role. It is applicable wherever lubricating oil is circulated, such as in machinery, hydraulic systems, or engine lubrication loops. Its ability to handle a 10MPa pressure difference indicates suitability for systems with significant pump pressure. The 100°C maximum working temperature points towards use in environments where the oil is subjected to operational heating.

Everyday Home Use

While its primary application is likely industrial, it could be relevant for home workshops or enthusiasts managing equipment with dedicated lubricating oil systems, such as certain power tools, compressors, or older vehicle maintenance projects. The key consideration would be matching the 10mm connections and ensuring the system's operating pressure and temperature fall within the filter's 10MPa and 100°C limits.

Benefits and Buying Value

The value of this filter lies in its specified performance within a defined set of parameters. It offers a known standard of filtration and construction for a specific fluid type.

Reuse and Low Maintenance

The product is presented as a single, complete unit (oil filter*1). The source material does not specify if the element is cleanable/reusable or is a disposable cartridge. Therefore, maintenance would involve replacement of the entire unit once its service life is concluded, with the frequency dependent on the specific system's contaminant load and oil change intervals.

Why Choose This Product

This filter is chosen for systems requiring a 10µm filtration level for lubricating oil, particularly where 10mm pipe connections are standard. Its defined limits for temperature (100°C) and pressure difference (10MPa) provide clear guidance for appropriate application, ensuring it is not used in scenarios beyond its design intent. The explicit model numbers (HU718 5X and 1121800009) allow for exact replacement or system specification.
