4-Port Parallel Charging Board for Simultaneous Balance Charging of 2-8S Lithium Batteries

This parallel charging expansion board is a practical tool for enthusiasts and professionals who use multiple lithium polymer (LiPo) battery packs, particularly in radio-controlled hobbies, drones, and other portable power applications. Its core function is to simplify workflow by allowing up to four separate battery packs to be charged in a single session, rather than one after another. By connecting batteries of the same cell count (denoted as 'S', from 2S to 8S) in parallel, the board combines their capacity while the voltage remains consistent with a single pack. This process can drastically reduce the total time spent on battery management, especially when preparing for events or long usage sessions. The design prioritises both efficiency and electrical safety with integrated protective components.

Features and Construction

The board's functionality is built around specific design choices aimed at handling the combined current of multiple batteries safely. Its construction details are focused on providing reliable performance during the parallel charging process.

Material and Build

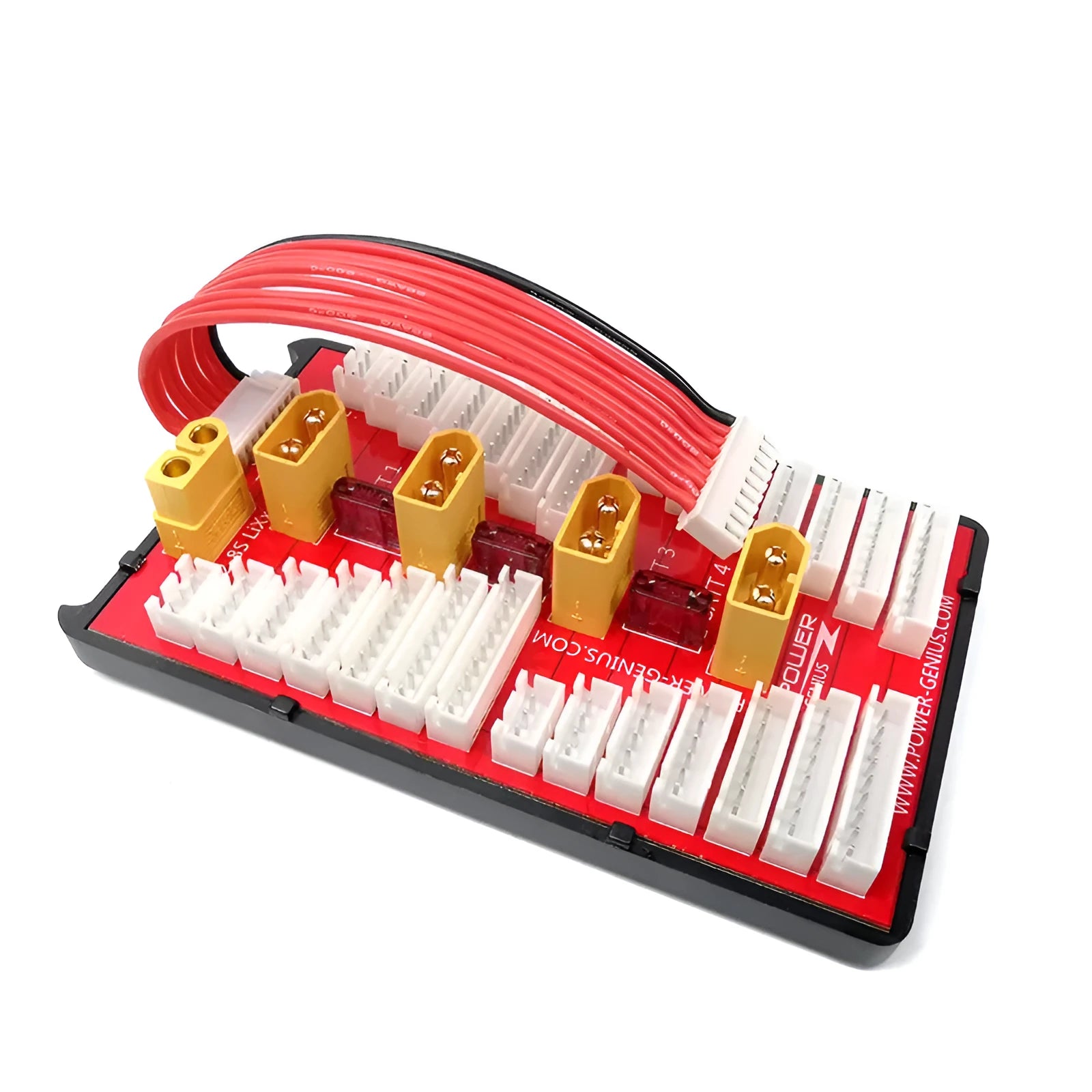

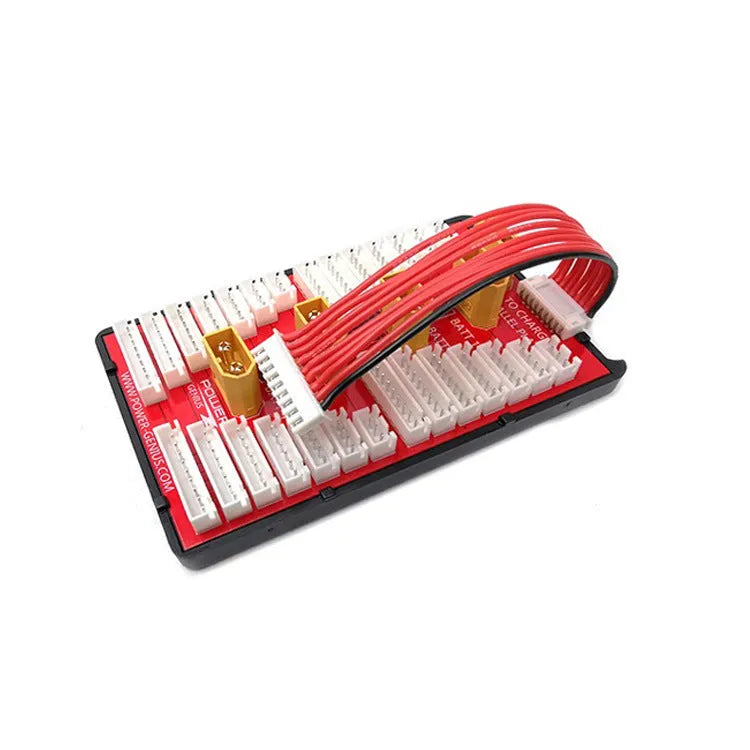

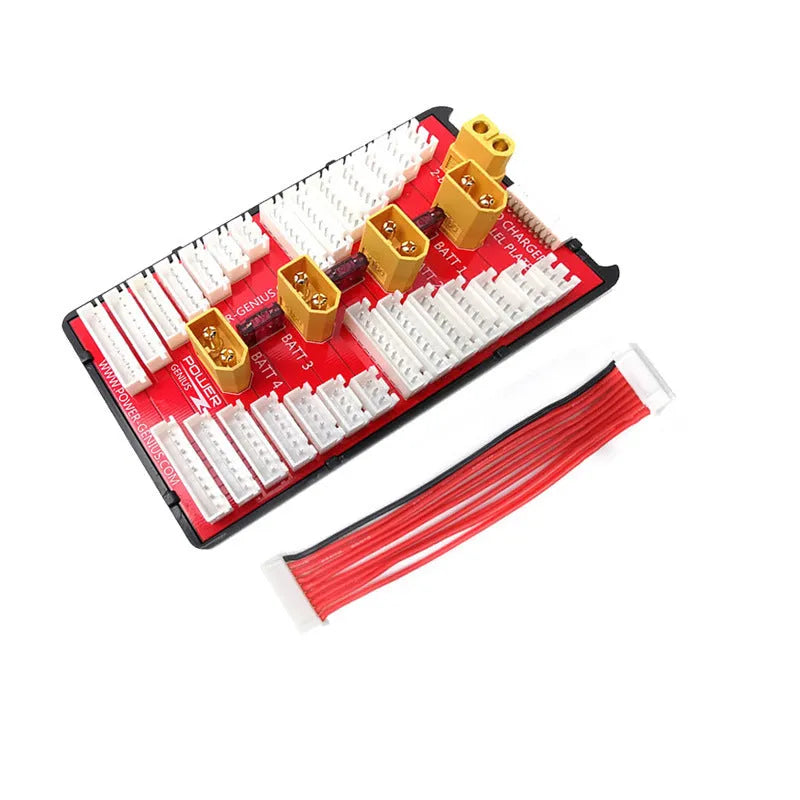

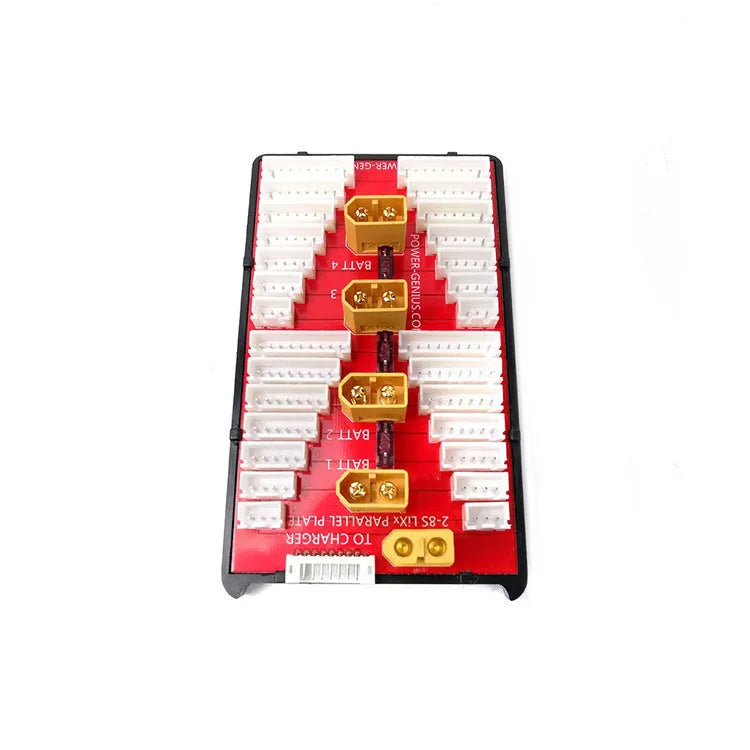

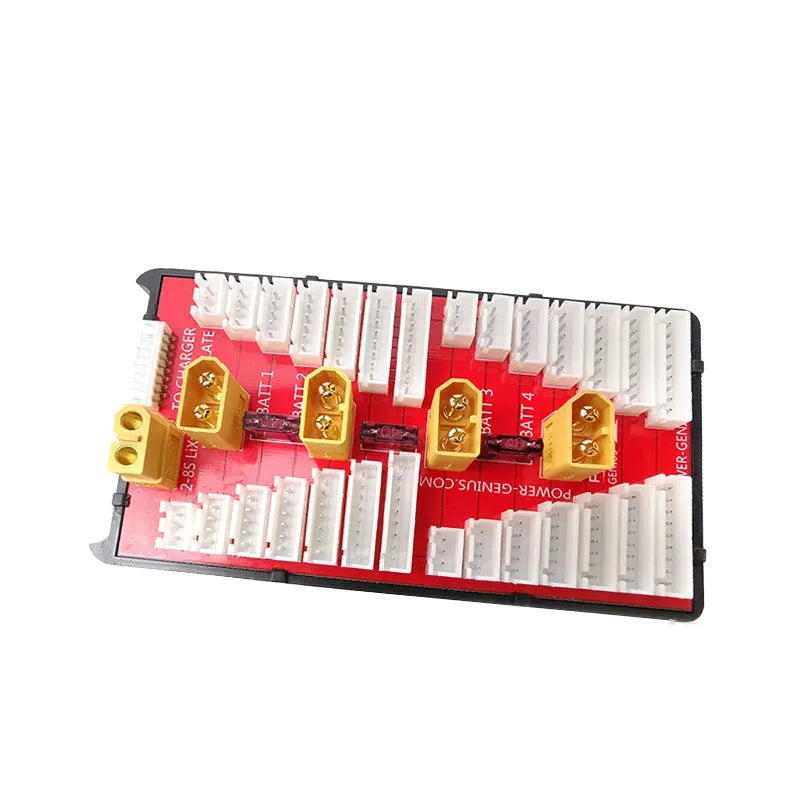

The board uses a printed circuit board (PCB) manufactured with thicker copper foil. This design is intended to support the higher combined currents involved in parallel charging, with a specified capability for currents up to 35A. All critical electrical connectors on the board are gold-plated. Gold plating is used to maintain good conductivity and reduce oxidation at the connection points over time. The balance port output lines are made from 18AWG multi-strand silicone wire, which is flexible and helps with routing during setup.

Size and Practical Fit

While exact physical dimensions are not specified, the product is an adapter board designed to sit between your compatible balance charger and your battery packs. It comes with silicone safety caps for the T plug connectors. These caps are a simple but important feature; when placed over any unused connector ports on the board, they prevent accidental contact with metal objects which could cause a dangerous short circuit.

Uses and Placement

This adapter is intended for users who regularly charge several lithium battery packs and seek to optimise their process. It transforms a standard single-port balance charger into a multi-port station.

Event or Professional Use

For events, races, or professional filming with drones and RC equipment, where multiple battery swaps are necessary, this board is highly relevant. Charging four packs simultaneously means less downtime between sessions and ensures a full set of batteries is ready more quickly. The instruction note that even batteries not rated for high C-number charging can be used safely when connected in parallel, as the individual current draw per pack is lower, making it a versatile tool for mixed battery inventories.

Everyday Home Use

For the hobbyist at home, this board eliminates the chore of monitoring and swapping batteries on the charger repeatedly. After a day of use, you can connect all discharged packs at once. The board's operation averages out small voltage differences between cells across the connected packs, which the source text states can effectively shorten the overall balance charging phase required.

Benefits and Buying Value

The value of this product lies in time saved and the added layer of safety integrated into its design, not in superfluous features.

Reuse and Low Maintenance

The board itself is a durable accessory with no moving parts. With proper use—following the connection order and voltage difference guidelines—and by keeping the connectors covered with the supplied caps when not in use, it should provide long-term service. Its design mitigates one of the key risks of parallel charging (high voltage differences) with built-in fuses.

Why Choose This Product

This parallel charging board is a focused solution for a specific problem: slow sequential battery charging. It offers a concrete advantage by supporting four packs at once for 2S through 8S batteries. Its safety features, like the 40A fuses between battery groups and the protective silicone caps, address practical concerns associated with handling high-current lithium batteries. It provides a way to get more utility from an existing balance charger without the need to invest in a much more expensive multi-channel dedicated charging station.
